TOUCHLAM®
polishing cloths & pads

The TOUCHLAM® cloths & pads are available in all standard diameters in two fixation modes: self-adhesive and magnetic.

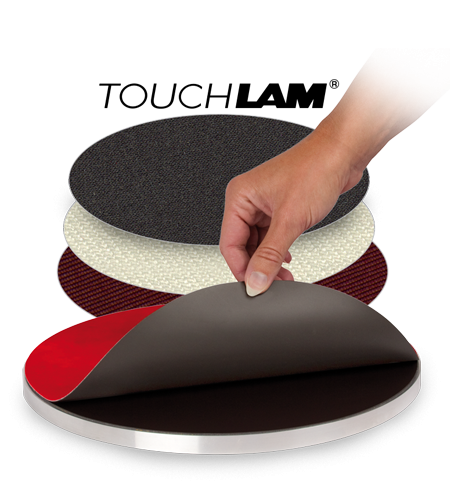

TOUCHLAM polishing cloths
Cameo Disk
LAM PLAN proposes a range of exclusive TOUCHLAM® polishing cloths and pads.
We conceive and produce all our TOUCHLAM® products, favouring quality of results through the selection of materials and treatments.
Quality of results

The structure and the composition of a polishing support have a direct impact on the
properties of the associated free abrasive during a polishing process. LAM PLAN has
designed a range of polishing cloths & pads according to their capacity of optimising the abrasive functions in order to obtain an optimum quality of results.

Example of a diamond abrasive, spread over different disc structures
lamplan polissage supportsdressage touchlamfig01
Simplified use

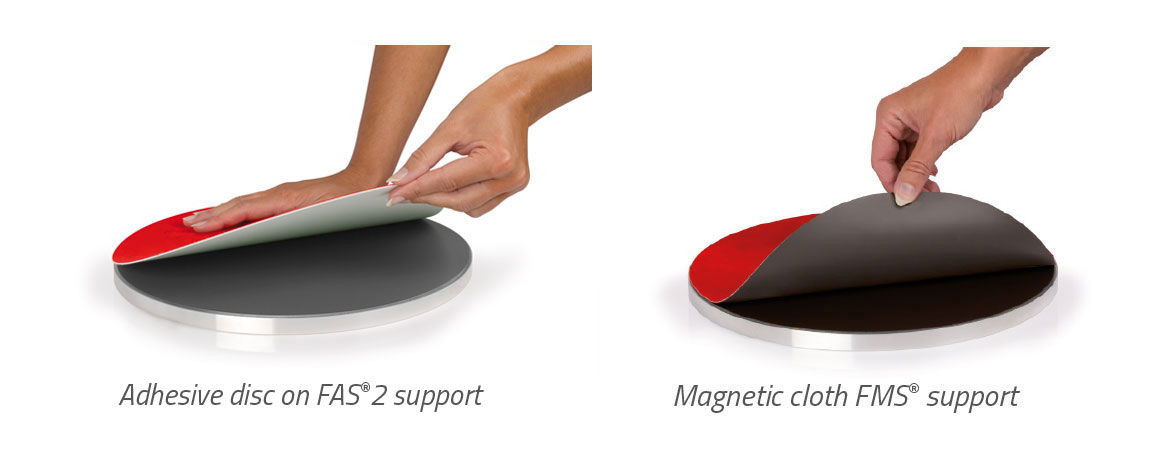

The TOUCHLAM® cloths & pads are available in all standard diameters in two fixation modes: self-adhesive and magnetic.

The marking allows an easy identification. A tab is now integrated on the discs to facilitate the removal of the protective foil of self-adhesive cloths.

Touchlam

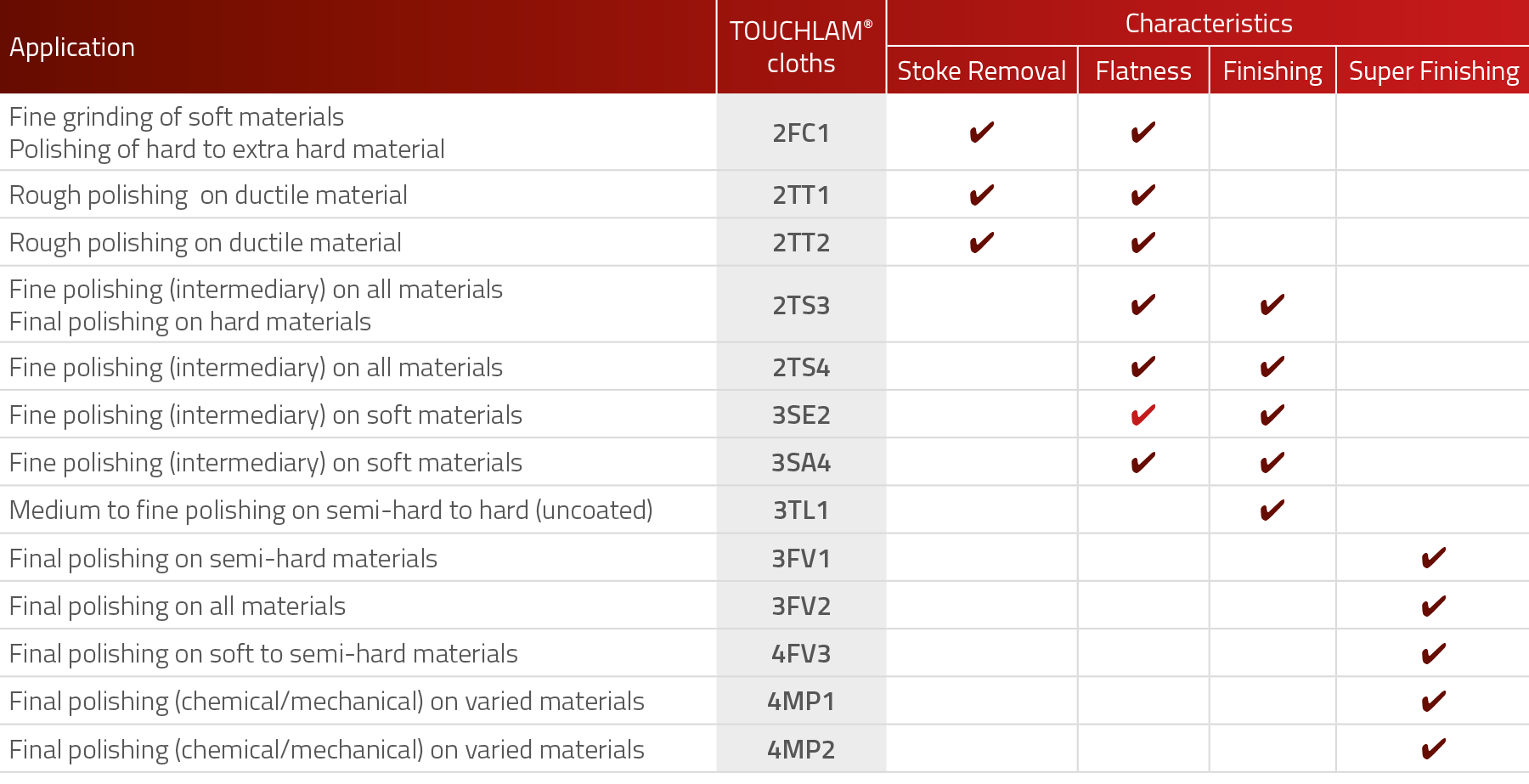

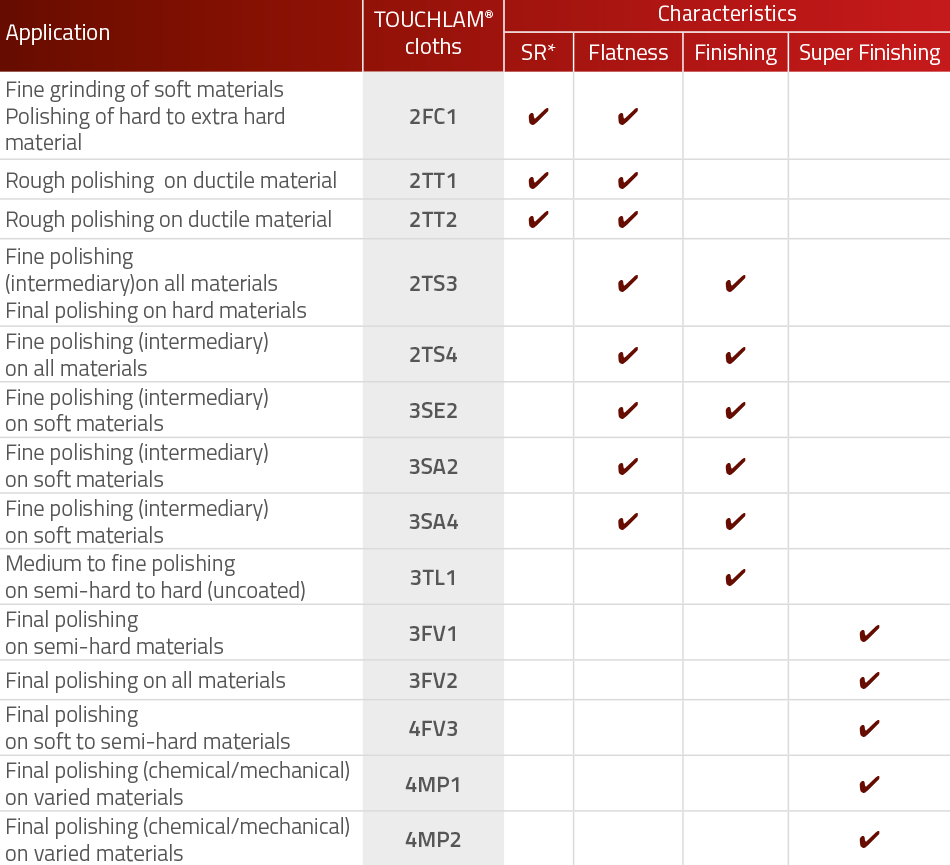

TOUCHLAM® disk application table

LAM PLAN guides you in your cloths and pads selection according to your results
expectations:

lamplan metallographie touchlam asavoir02


TOUCHLAM®discs 2

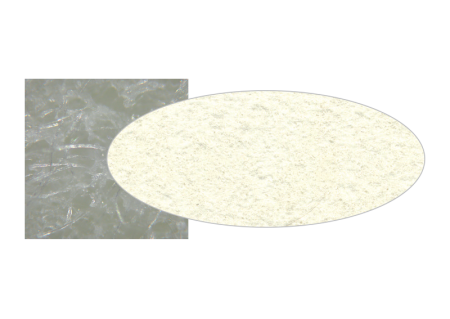

TOUCHLAM® discs 2FC1

Impregnated non-woven fibres.
Stoke removal, finishing on extra hard materials.
Usable with diamond abrasives from 3 to 9 µm.

 5 units Self-adhesive Magnetic X-LAM
 Ø mm
  Ref. Ref.   Ref.
200 2FC1 0A0 2005 2FC1 0M0 2005 2FC1 0X0 2005
250 2FC1 0A0 2505 2FC1 0M0 2505 2FC1 0X0 2505
300 2FC1 0A0 3005 2FC1 0M0 3005 2FC1 0X0 3005
400 2FC1 0A0 4005 – –

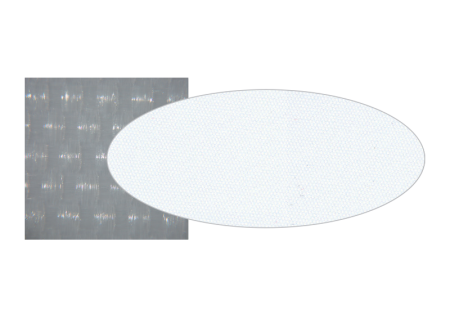

TOUCHLAM® dics 2TT1

Taffeta woven synthetic fibres.
Stock removal and inherent flatness on difficult materials.
Usable with diamond abrasives from 6 to 15 µm.

 5 units Self-adhesive Magnetic X-LAM
 Ø mm
  Ref. Ref.   Ref.
200 2TT1 0A0 2005 2TT1 0M0 2005 2TT1 0X0 2005
250 2TT1 0A0 2505 2TT1 0M0 2505 2TT1 0X0 2505
300 2TT1 0A0 3005 2TT1 0M0 3005 2TT1 0X0 3005
400 2TT1 0A0 4005 – –

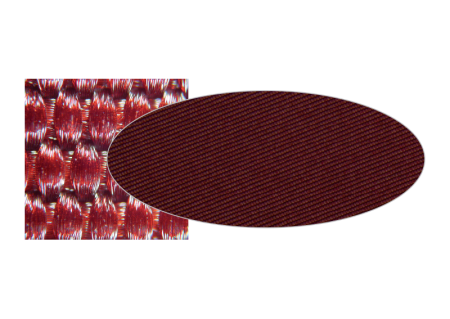

TOUCHLAM® dics 2TT2

Taffeta woven synthetic fibres.
Stock removal and inherent flatness on difficult materials.
High durability.
Usable with diamond abrasives from 6 to 15 µm.

 5 units Self-adhesive Magnetic X-LAM
 Ø mm
  Ref. Ref.   Ref.
200 2TT2 0A0 2005 2TT2 0M0 2005 2TT2 0X0 2005
250 2TT2 0A0 2505 2TT2 0M0 2505 2TT2 0X0 2505
300 2TT2 0A0 3005 2TT2 0M0 3005 2TT2 0X0 3005
400 2TT2 0A0 4005 – –

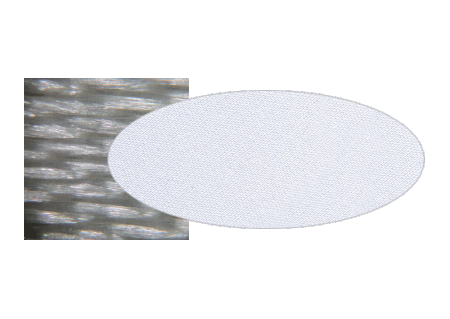

TOUCHLAM® discs 2TS3

Extra-thin satin woven natural fibres.
Excellent inherent flatness and finishing, preservation of inclusions and edges, on all materials.
Usable with diamond abrasives from 2 to 9 µm.

 5 units Self-adhesive Magnetic X-LAM
 Ø mm
  Ref. Ref.   Ref.
200 2TS3 0A0 2005 2TS3 0M0 2005 2TS3 0X0 2005
250 2TS3 0A0 2505 2TS3 0M0 2505 2TS3 0X0 2505
300 2TS3 0A0 3005 2TS3 0M0 3005 2TS3 0X0 3005
400 2TS3 0A0 4005 – –

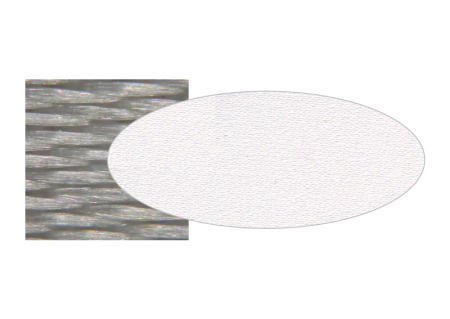

TOUCHLAM® discs 2TS4

Satin woven natural fibres.
Excellent finishing and flatness, preservation of edges,especially on sample composed of materials of various hardness or with coating. High durability.
Usable with diamond abrasives from 1 to 6 µm.

 5 units Self-adhesive Magnetic X-LAM
 Ø mm
  Ref. Ref.   Ref.
200 2TS4 0A0 2005 2TS4 0M0 2005 2TS4 0X0 2005
250 2TS4 0A0 2505 2TS4 0M0 2505 2TS4 0X0 2505
300 2TS4 0A0 3005 2TS4 0M0 3005 2TS4 0X0 3005
400 2TS4 0A0 4005 – –

TOUCHLAM® discs 3

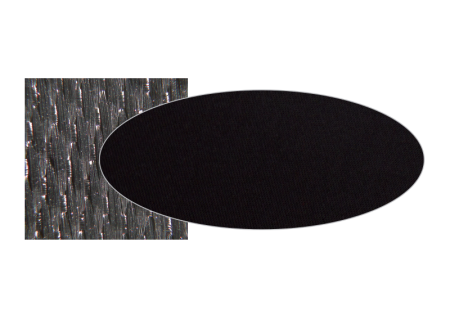

TOUCHLAM® discs 3SE2

Woven synthetic silk fibres.
Finishing and flatness on soft materials.
Usable with diamond abrasives from 1 to 3 µm.

 5 units Self-adhesive Magnetic X-LAM
 Ø mm
  Ref. Ref.   Ref.
200 3SE2 0A0 2005 3SE2 0M0 2005 3SE2 0X0 2005
250 3SE2 0A0 2505 3SE2 0M0 2505 3SE2 0X0 2505
300 3SE2 0A0 3005 3SE2 0M0 3005 3SE2 0X0 3005
400 3SE2 0A0 4005 – –

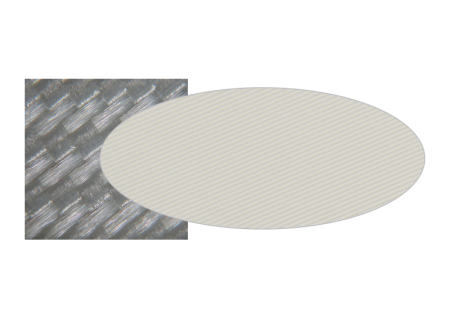

TOUCHLAM® discs 3SA4

Soft composite synthetic fibres
Finishing on soft materials.
Usable with diamond abrasives from 0,25 to 3 µm.

 5 units Self-adhesive Magnetic X-LAM
 Ø mm
  Ref. Ref.   Ref.
200 3SA4 0A0 2005 3SA4 0M0 2005 3SA4 0X0 2005
250 3SA4 0A0 2505 3SA4 0M0 2505 3SA4 0X0 2505
300 3SA4 0A0 3005 3SA4 0M0 3005 3SA4 0X0 3005
400 3SA4 0A0 4005 – –

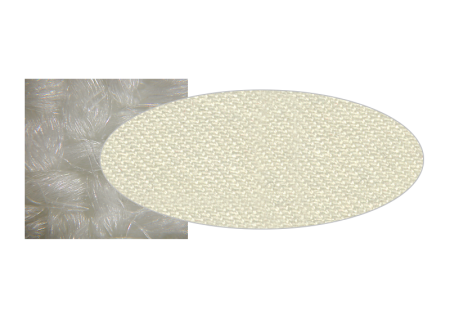

TOUCHLAM® discs 3TL1

High resistant woven wool fibres.
Adapted for the finishing of non-mounted samples.
High durability.
Usable with diamond abrasives from 3 to 6 µm.

 5 units Self-adhesive Magnetic X-LAM
 Ø mm
  Ref. Ref.   Ref.
200 3TL1 0A0 2005 3TL1 0M0 2005 3TL1 0X0 2005
250 3TL1 0A0 2505 3TL1 0M0 2505 3TL1 0X0 2505
300 3TL1 0A0 3005 3TL1 0M0 3005 3TL1 0X0 3005
400 3TL1 0A0 4005 – –

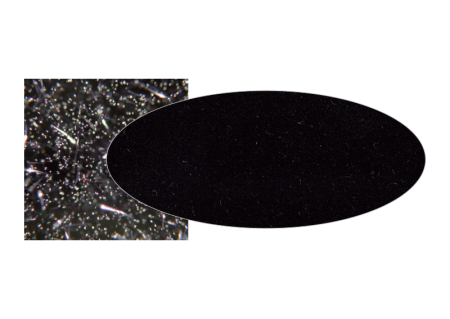

TOUCHLAM® discs 3FV1

Semi-hard flocked short viscose fibres.
Super finishing, preservation of the inherent flatness on mounted hard materials.
Usable with diamond abrasives from 1 to 3 µm.

 5 units Self-adhesive Magnetic X-LAM
 Ø mm
  Ref. Ref.   Ref.
200 3FV1 0A0 2005 3FV1 0M0 2005 3FV1 0X0 2005
250 3FV1 0A0 2505 3FV1 0M0 2505 3FV1 0X0 2505
300 3FV1 0A0 3005 3FV1 0M0 3005 3FV1 0X0 3005
400 3FV1 0A0 4005 – –

TOUCHLAM® discs 4

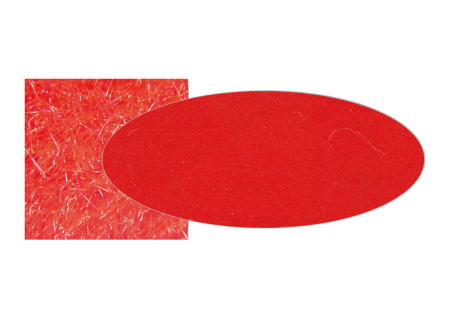

TOUCHLAM® discs 4FV3

Soft flocked long viscose fibres.
Super finishing on large variety of materials, including very soft materials.
Principally used with diamond abrasives from 0,25 to 3 µm but also with alumina suspension and colloidal silica.

 5 units Self-adhesive Magnetic X-LAM
 Ø mm
  Ref. Ref.   Ref.
200 4FV3 0A0 2005 4FV3 0M0 2005 4FV3 0X0 2005
250 4FV3 0A0 2505 4FV3 0M0 2505 4FV3 0X0 2505
300 4FV3 0A0 3005 4FV3 0M0 3005 4FV3 0X0 3005
400 4FV3 0A0 4005 – –

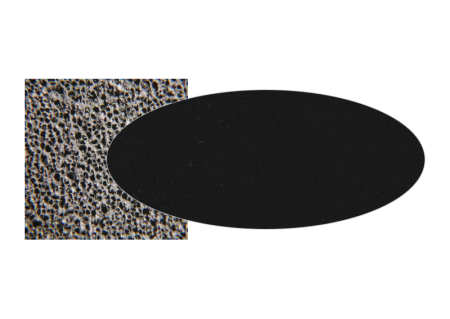

TOUCHLAM® discs 4MP1

Microporous polyurethane foam.
Adapted to sensitive samples requiring an extreme super finish with chemical abrasives.
Usable with oxides or colloidal silica.

 5 units Self-adhesive Magnetic X-LAM
 Ø mm
  Ref. Ref.   Ref.
200 4MP1 0A0 2005 4MP1 0M0 2005 4MP1 0X0 2005
250 4MP1 0A0 2505 4MP1 0M0 2505 4MP1 0X0 2505
300 4MP1 0A0 3005 4MP1 0M0 3005 4MP1 0X0 3005
400 4MP1 0A0 4005 – –

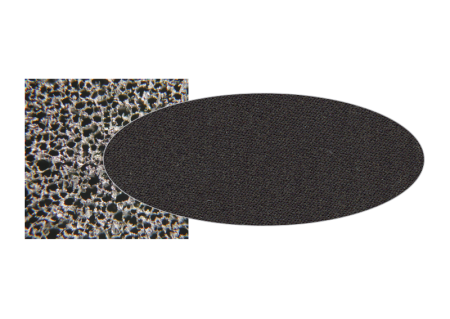

TOUCHLAM® discs 4MP2

Microporous polyurethane foam.
High thickness. High durability, usable in production process.
Usable with oxides or colloidal silica.

 5 units Self-adhesive Magnetic X-LAM
 Ø mm
  Ref. Ref.   Ref.
200 4MP2 0A0 2005 4MP2 0M0 2005 4MP2 0X0 2005
250 4MP2 0A0 2505 4MP2 0M0 2505 4MP2 0X0 2505
300 4MP2 0A0 3005 4MP2 0M0 3005 4MP2 0X0 3005
400 4MP2 0A0 4005 – –
