Automatic polishing machine with central and individual pressure

5,7″ touch screen

User friendly interface.
Memorization of programs, integrating up to 8 steps.

Powerful central and individual pressure head

Sample holder with 6 holes.

Ø plate capacity
250 to 300 mm
Plate rotation speed
20 to 650 rpm
Capacity
Sample size 6 X Ø 40 mm
& 6 X Ø 50 mm
Programming
60 storable programs

See the full technical sheet

INTRODUCTION

MASTERLAM^®3.0

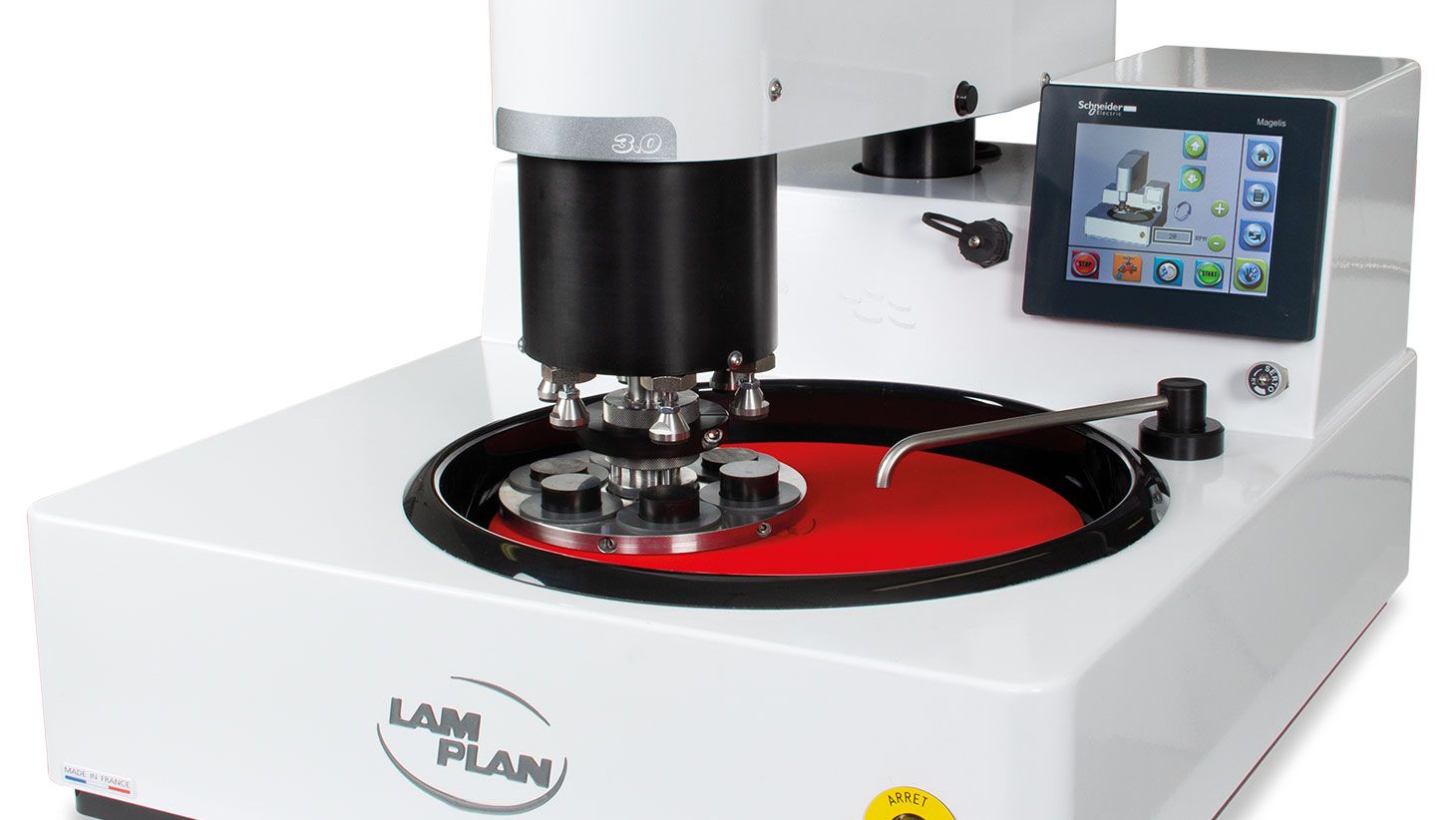

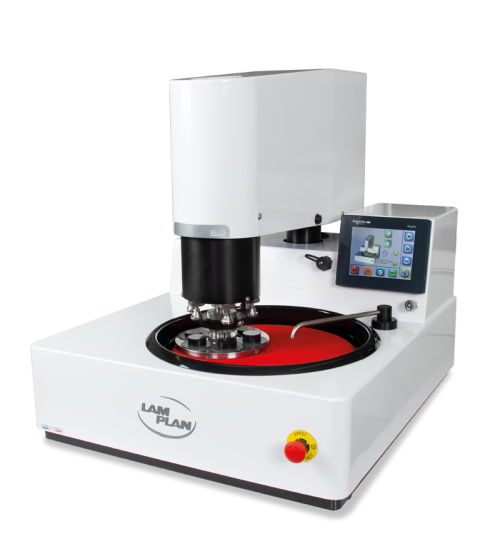

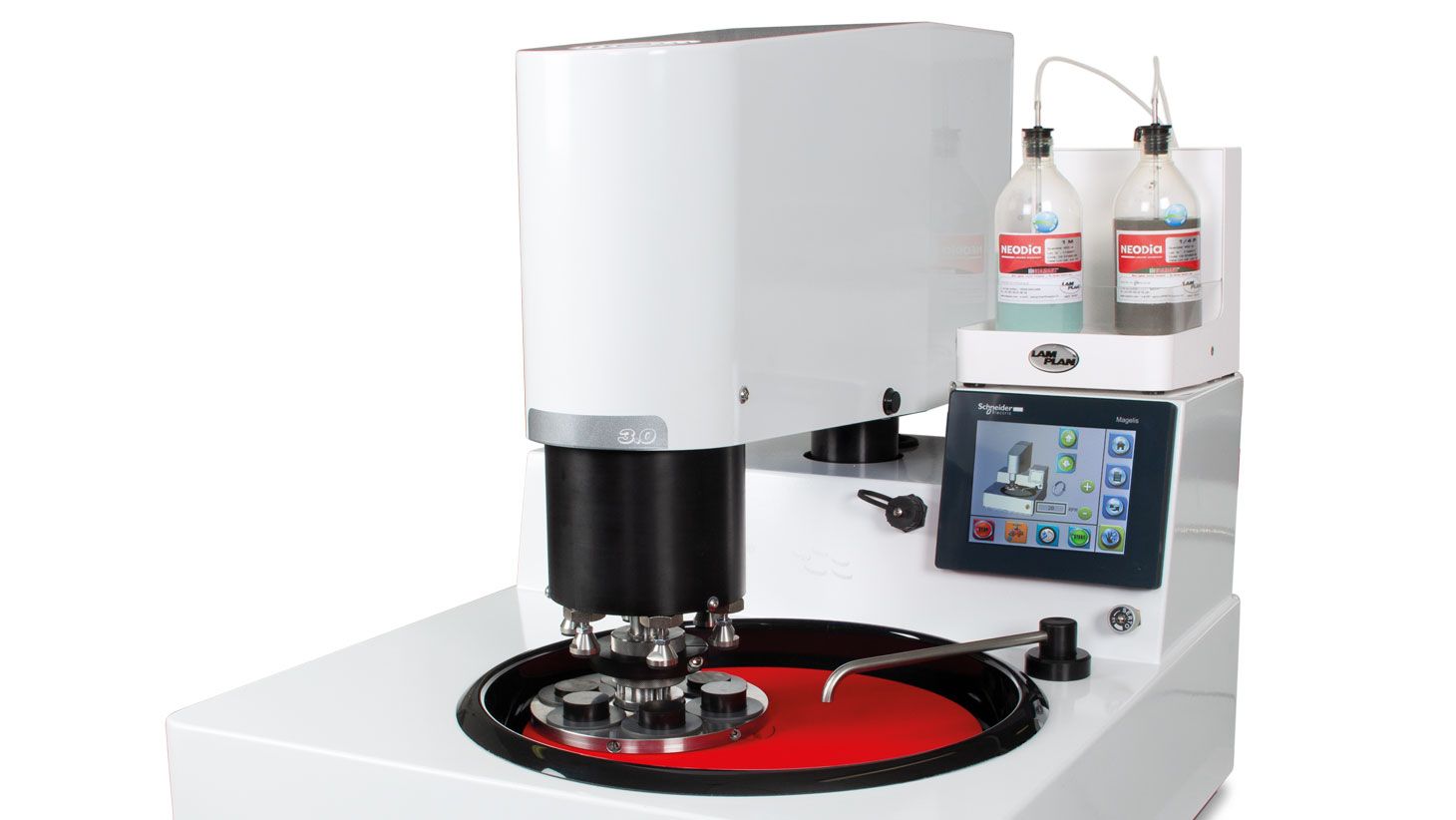

Automatic, single plate Ø 250 to 300 mm polishing machine, bidirectional rotation and variable speed.

This machine has all the functions that make the MASTERLAM^® range outstand and on this model a specific new combo-head.

The MASTERLAM^®3.0 is the metallographic polishing machine without concession. Polishing can be carried out with central pressure or individual pressure and can be equipped with a stock removal measuring system.

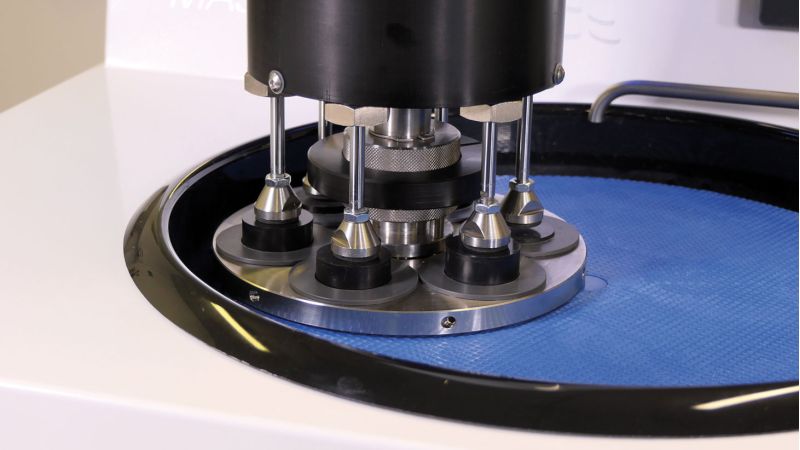

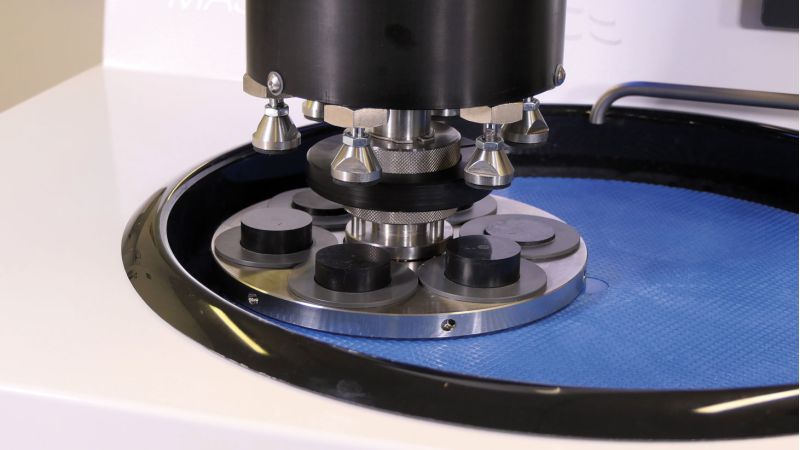

The MASTERLAM^®3.0 is based on the same technology as the MASTERLAM^®1.0 with, in this configuration, a powerful central and individual pressure head equipped with 6 pistons. Changing sample holders is quick and the pressure mode is controlled directly on the screen without having to touch the head, thus, you can switch from one pressure mode to another in a few seconds.

Central pressure mode

Individual pressure mode

VIDEO & VISUALS

Design
and advanced technology

The MASTERLAM^®3.0 is a high-performance machine intended for intensive use such as in-production inspections.

All LAM PLAN videos on Youtube

Non-contractual wp-content/uploads

IN DETAIL

Technical characteristics
and equipment

Options

Stock removal control system

60 ML30S C0

Downloads

Technical data sheet

PDF 299 Ko

Catalogs

Catalogs page

Technical data MASTERLAM^®3.0

Plate capacity	Ø 250 to 300 mm
Body	Steel coated with epoxy paint
Bowl	Removable resin bowl for easy cleaning
Controls	Touch screen (5,7“)
Plate rotation speed	Variable from 20 to 650 rpm Bidirectional rotation
Head’s speed	Variable from 10 to 150 rpm Bidirectional rotation
Applicable load	5 to 400 N central pressure 5 to 100 N individual pressure
Capacity	Sample size 6 X Ø 40 mm Sample size 1 – 6 X Ø 50 mm
Workspace lightening	LED
Water inlet	Removable pipe, with flow rate adjustment and safety solenoid valve
Programming	60 storable programs, USB connector to backup programs and Ethernet port for networking
Cumulative machine power	1.1 kW
Voltage	230 V – 50 Hz single phase
Pneumatic feed	6 bars
Dim. W x H x D	550 x 670 x 580 mm
Weight	85 kg
Reference	60 ML300 00

ACCESSORIES & OPTIONS

Available accessories

Dosing unit DISTRILAM^®

60 MLD00 00

The automatic dosing unit DISTRILAM^® is directly controlled via the touch screen on the machine through a RS 232 connector. It is instantly recognised by all the MASTERLAM^® polishing devices as the control program is already programmed in the machines.
Transparent protective housing

60 MLEP0 00

The secured housing is a totally transparent protection compatible with the full range of MASTERLAM^®.

Its opening stops all movements of the machine*, it offers an integral protection complying with the 2006/42/ CE and 2004/108/CE standards. The housing’s design preserves the accessibility of the plate and does not clutter the workspace.

The touch screen is located outside of the secured zone; therefore, the commands are permanently accessible.

For the MASTERLAM^®1.0 and 3.0 the touch screen control panel is located on the right, a 195 mm space needs to be foreseen in addition to the machine width.

*However, the transparent secured housing authorises the plate rotation in the manual mode.

Required space for the MASTERLAM^®1.0, 2.0 and 3.0:
Width 770 mm – Height 910 mm
Aluminium plates
- Aluminium plate Ø 250 mm – 08 8270300
- Aluminium plate Ø 300 mm – 08 8270400
Metal clamping rings
- Metal clamping ring Ø 250 mm – 60 SL00490
- Metal clamping ring Ø 300 mm – 60 SL00690
- Metal clamping ring Ø 305 mm – 60 SL00790

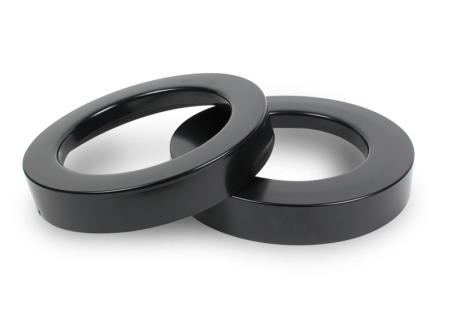

Tank reducers
- Tank reducer Ø 230 mm – 60 ML08290
- Tank reducer Ø 250 mm – 60 ML08190

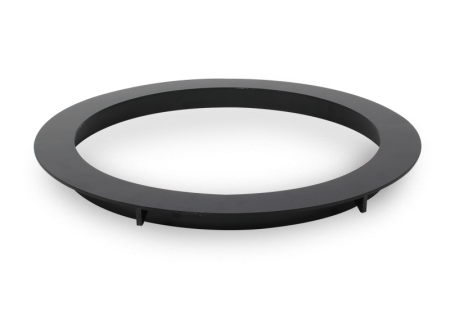

Anti-splash ring

60 ML08091

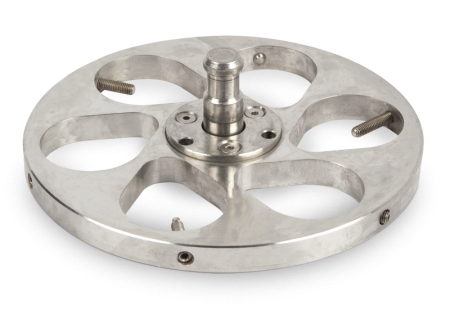

CP sample holder
- PC Ø 160 mm with 6 x Ø 20 to 40 mm water drop cells
  06MLC1000
- PC Ø 160 mmwith 9 x Ø 30 mm water drop cells
  06MLC3000
- PC Ø 160 mm with 6 x Ø 40 mm water drop cells
  06MLC4000
- PC Ø 160 mm with 5 x Ø 50 mm water drop cells
  06MLC5000

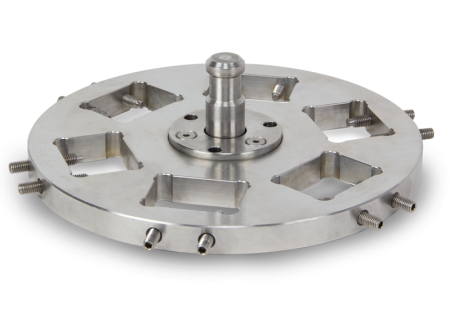

- PC Ø 160 mm with 3 x rectangular 40 x 70 mm water drop cells
  06MLC1200
- PC Ø 160 mm with 6 x rectangular 25 x 34 mm water drop cells
  06MLC1400

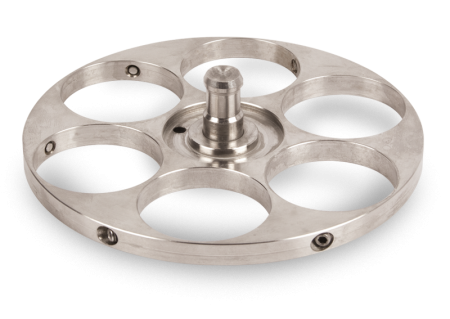

IP sample holder

06MLI1000

Ø 160 mm with 6 x Ø 50 mm water cells
Sample holder for irregular parts

06 MLC60 00

Ø 160 mm central pressure sample holder for eccentric restriction of non-embedded complex geometric parts.

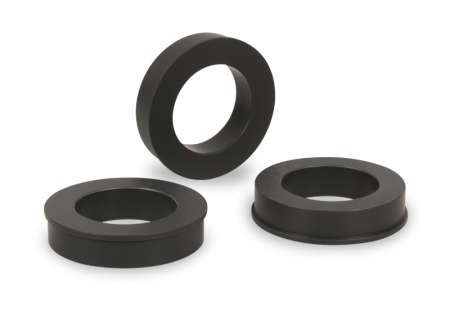

Reducer rings
- Kit 6 x Ø 40 mm reducer rings – 06MLIK500
- Kit 6 x Ø 30 mm reducer rings – 06MLIK200
- Kit 6 x Ø 25,4 mm reducer rings – 06MLIK110
- Kit 6 x 1-1/4″ reducer rings – 06MLIK310
- Kit 6 x 1-1/2″ reducer rings – 06MLIK410
Levelling plate for CP sample holder

06MLP0100

Ø 160 mm – 3 mm depth
Sedimentation 60 L tank

60 A00299 00

With pump controlled by the machine.
