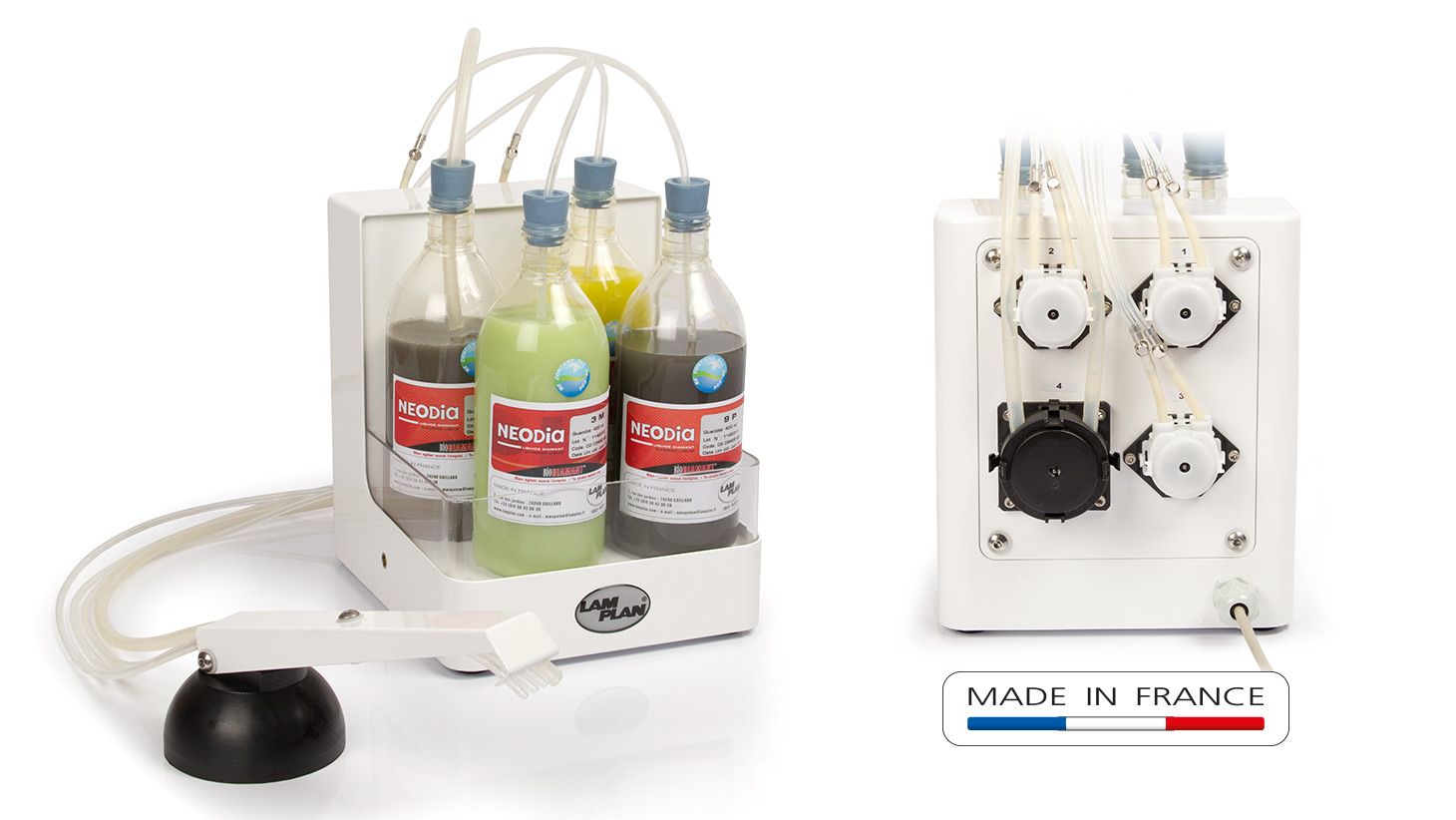

The automatic dosing unit DISTRILAM^® is directly controlled via the touch screen on the machine through a RS 232 connector. It is instantly recognised by all the MASTERLAM^® polishing devices as the control program is already programmed in the machines.

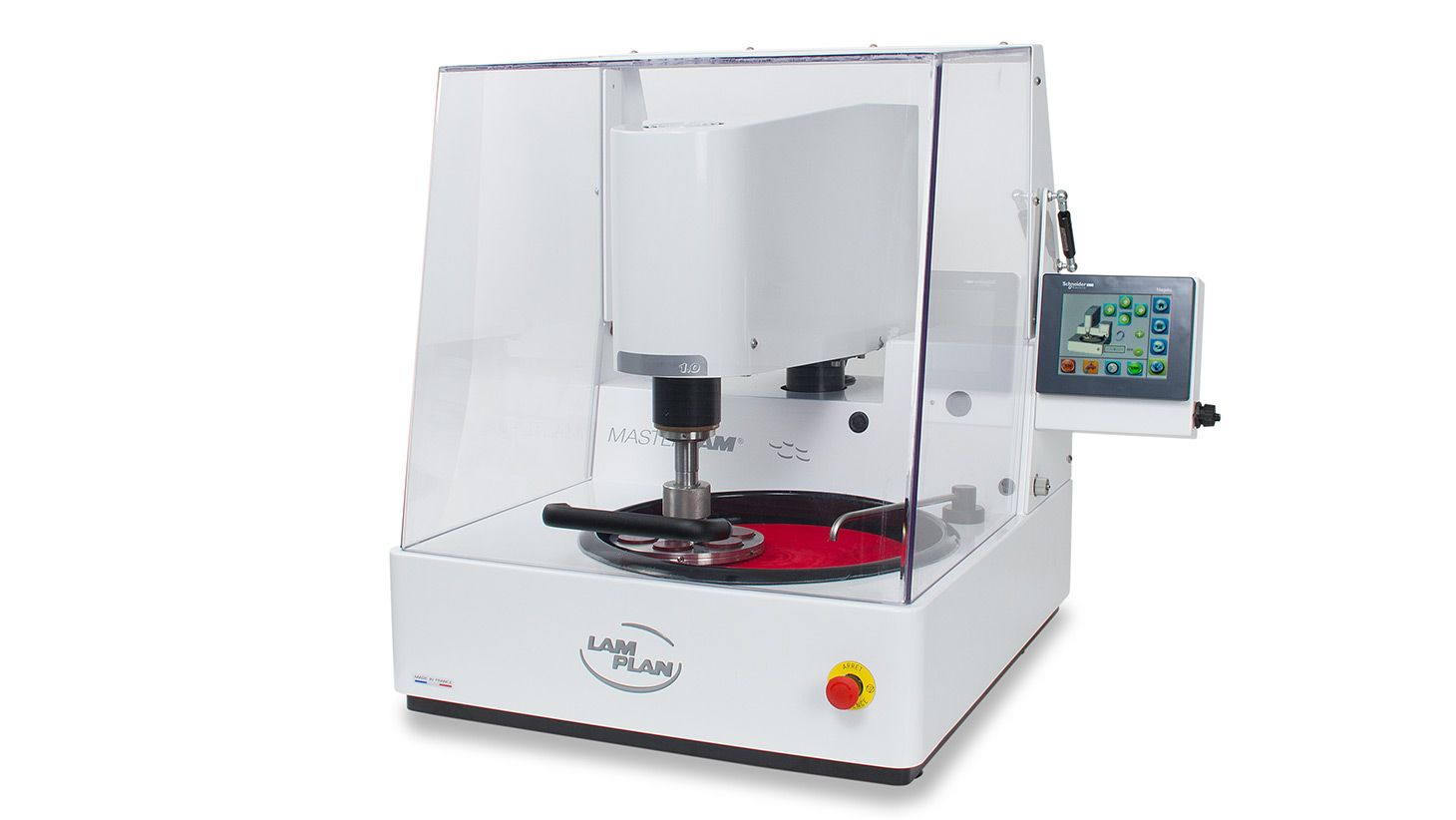

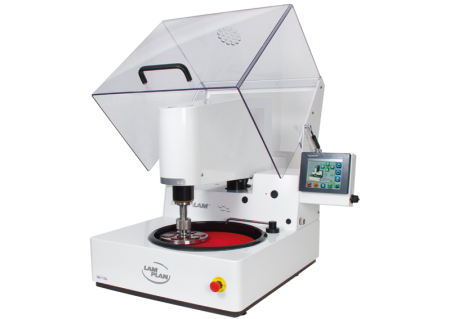

The secured housing is a totally transparent protection compatible with the full range of MASTERLAM^®.

Its opening stops all movements of the machine*, it offers an integral protection complying with the 2006/42/ CE and 2004/108/CE standards. The housing’s design preserves the accessibility of the plate and does not clutter the workspace.

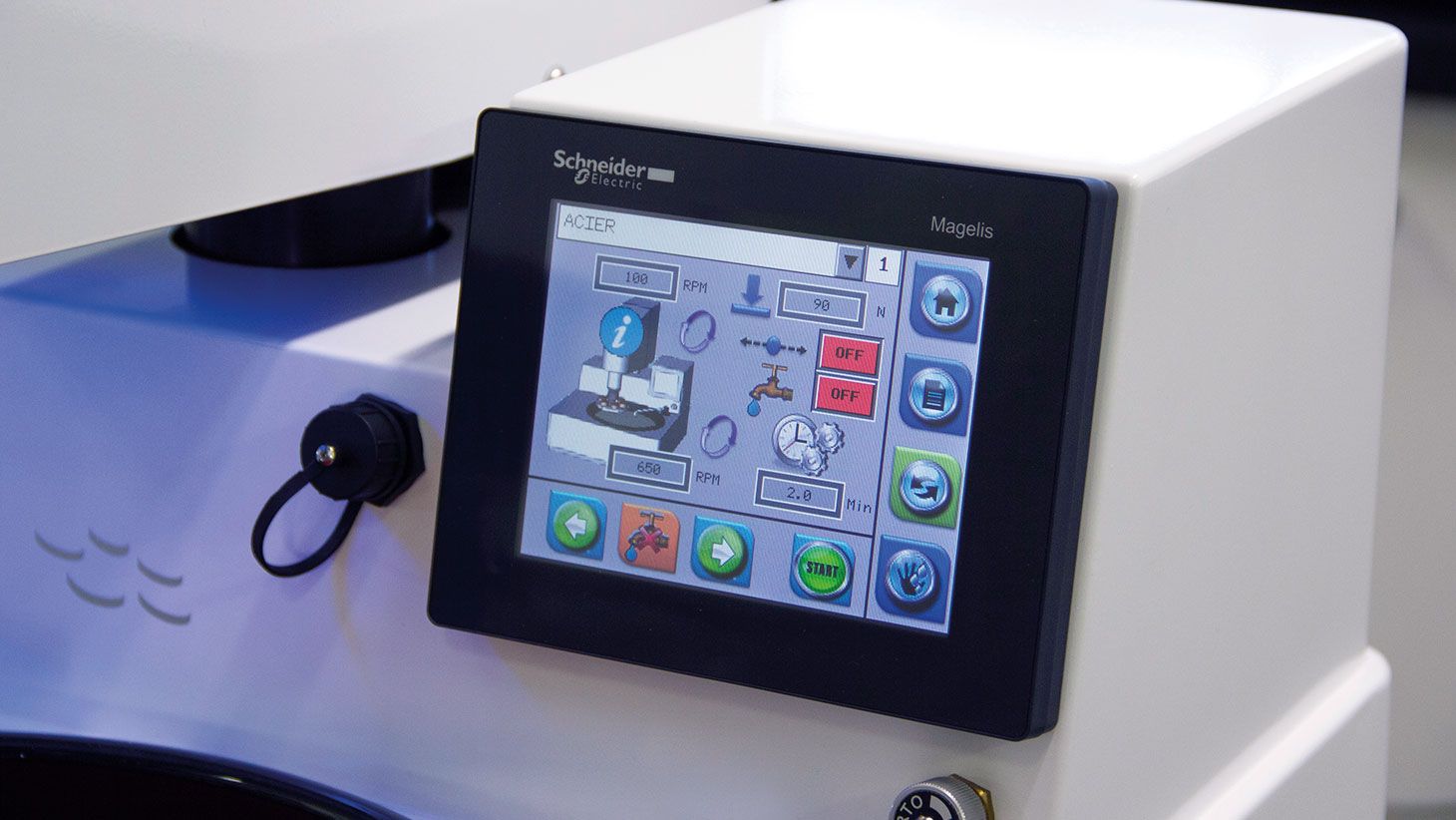

The touch screen is located outside of the secured zone; therefore, the commands are permanently accessible.

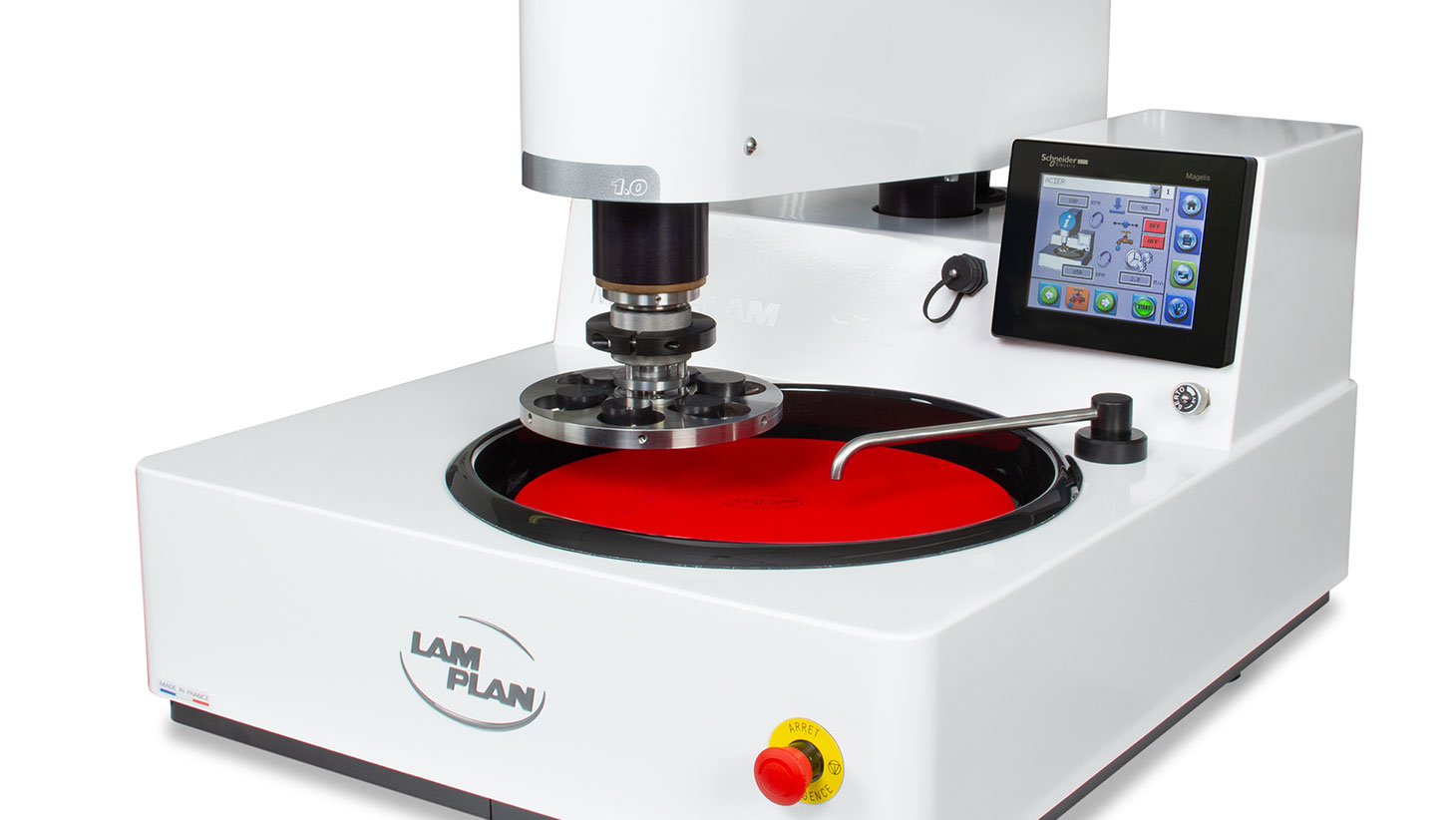

For the MASTERLAM^®1.0 and 3.0 the touch screen control panel is located on the right, a 195 mm space needs to be foreseen in addition to the machine width.

*Le capot transparent sécurisé autorise toute fois la mise en rotation du plateau en mode manuel.

Required space for the MASTERLAM^®1.0, 2.0 and 3.0:
Width 770 mm – Height 910 mm.

• Aluminium plate Ø 250 mm – 08 8270300
• Aluminium plate Ø 300 mm – 08 8270400

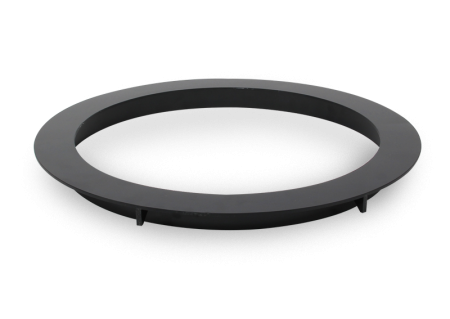

• Metal clamping ring for Ø 250 mm plate – 60 SL00490
• Metal clamping ring for Ø 300 mm plate – 60 SL00690
• Metal clamping ring for Ø 305 mm plate – 60 SL00790

• Tank reducer Ø 250 mm – 60 ML08190

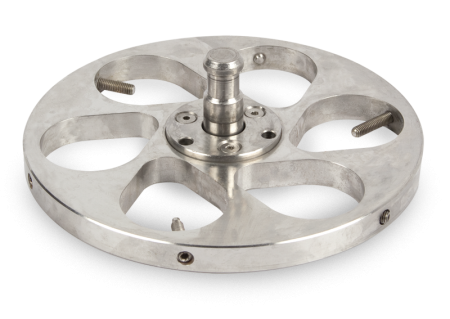

• Ø 160 mm with 6 x Ø 20 to 40 mm water drop cells
  06MLC1000
• Ø 160 mm with 9 x Ø 30 mm water drop cells
  06MLC3000
• Ø 160 mm with 6 x Ø 40 mm water drop cells
  06MLC4000
• Ø 160 mm with 5 x Ø 50 mm water drop cells
  06MLC5000
• Ø 160 mm with 3 x rectangular 40 x 70 mm water drop cells
  06MLC1200

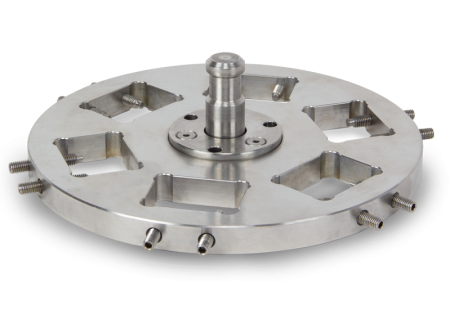

• Ø 160 mm with 6 x rectangular 25 x 34 mm water drop cells
  06MLC1400

Ø 160 mm central pressure sample holder for eccentric restriction of non-embedded complex geometric parts.

With pump controlled by the machine.
