The most versatile manual polishing machine

Evolutive

With the mechanical pressure head SPRINGLAM®and the programmable dosing unit M.M. 909 M, the SMARTLAM® 2.0 becomes a highly efficient semi-automatic polishing system.

Ergonomic and easy to use

Bidirectional rotation, variable speed and programmable timer

Plate capacity

Ø from 200 to 300 mm

Ø plate capacity
200 to 300 mm
Plate rotation speed
20 to 650 rpm
Weight
30 kg
Body
Steel, coated with epoxy paint

See the full technical sheet

INTRODUCTION

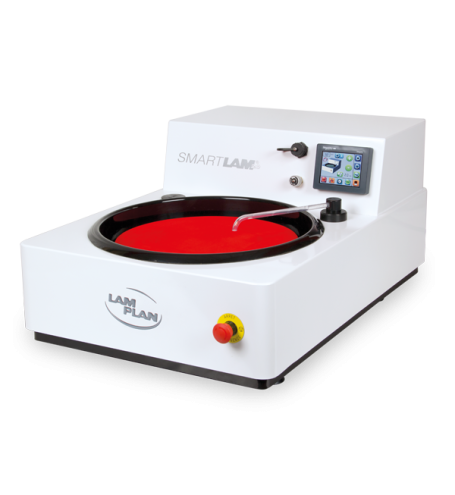

SMARTLAM^®2.0

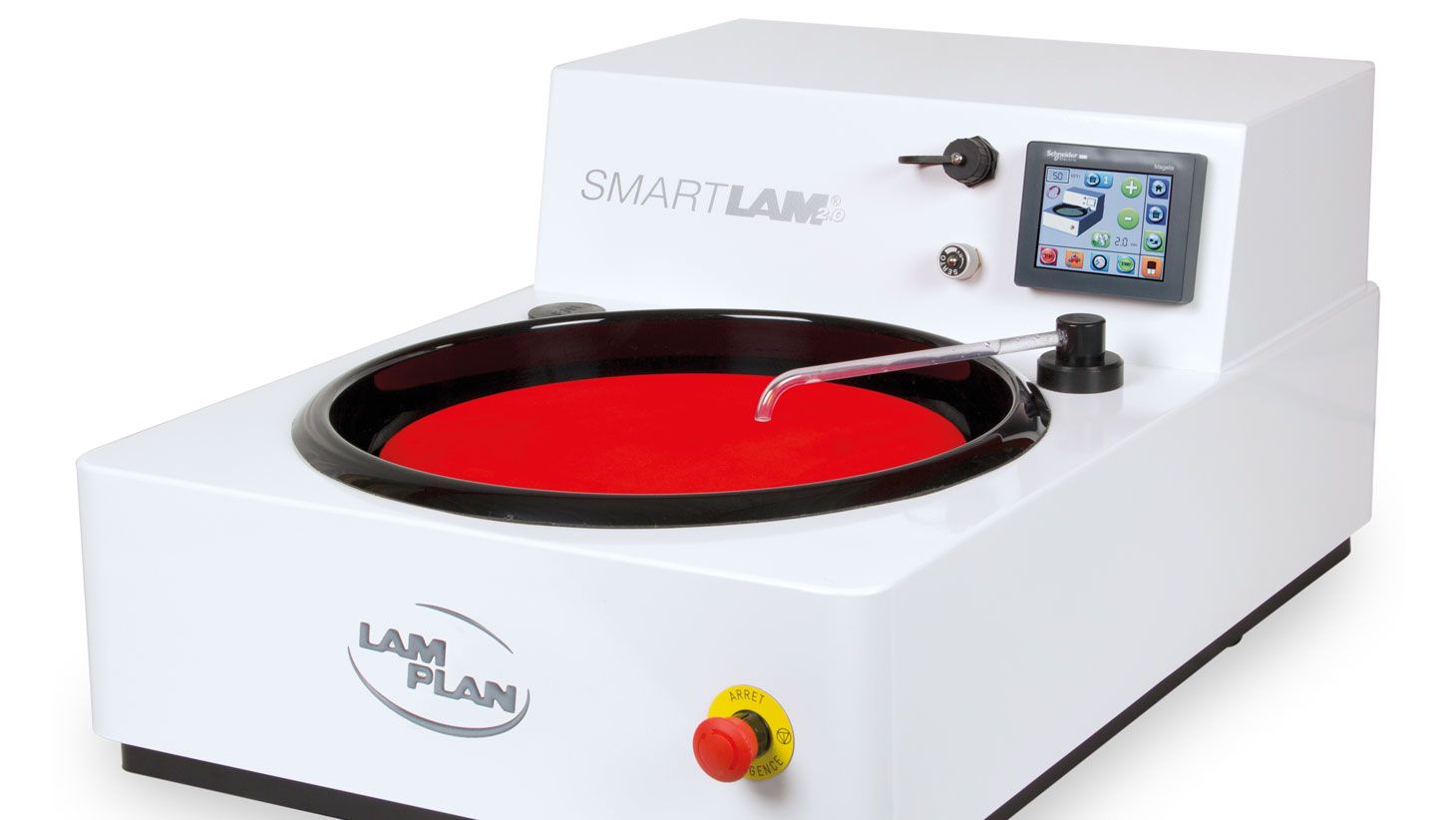

The SMARTLAM^®2.0 is a compact, single plate polishing machine that gives you a wide range of possibilities both in manual and semi-automatic polishing. Ergonomic and easy-to-use, the SMARTLAM^®2.0 is entirely controlled by a colour touch screen equipped with an intuitive interface. The internal memory can store 9 programs that can be exported via the USB port.

The power of the bidirectional rotation, variable-speed, constant -torque motor and the possibility to use plates with a diameter from 200 to 300 mm are exclusive assets that will allow you to face up to all situations encountered in metallographic research polishing.

VIDEO & VISUALS

Design
and advanced technology

Thanks to the mechanical pressure head option SPRINGLAM^® and the central-pressure holders but also use of the M.M. 909 M programmable dosing unit slaved to the machine, you will have a very efficient, semi-automatic polishing system.

All LAM PLAN videos on Youtube

SPRINGLAM^® optional

Non-contractual wp-content/uploads

IN DETAIL

Technical characteristics
and equipment

Évolutive

Thanks to the mechanical pressure head option SPRINGLAM^® and the central-pressure holders but also use of the M.M. 909 M programmable dosing unit slaved to the machine, you will have a very efficient, semi-automatic polishing system.

Downloads

Technical sheet

PDF 452 Ko

Catalogs

Catalogs page

Technical data SMARTLAM^®2.0

Plate Capacity	Ø 200 to 300 mm
Body	Steel, coated with epoxy paint
Bowl	Removable resin basin for easy cleaning
Controls	3,5“ touch screen to control the machine: start/stop, timer, speed and direction of plate, water solenoid valve
Plate rotation speed	Variable from 20 to 650 rpm
Rotation	Clockwise / counter-clockwise
Programming	Loads 9 programs
Connection	Slave connector for dosing unit

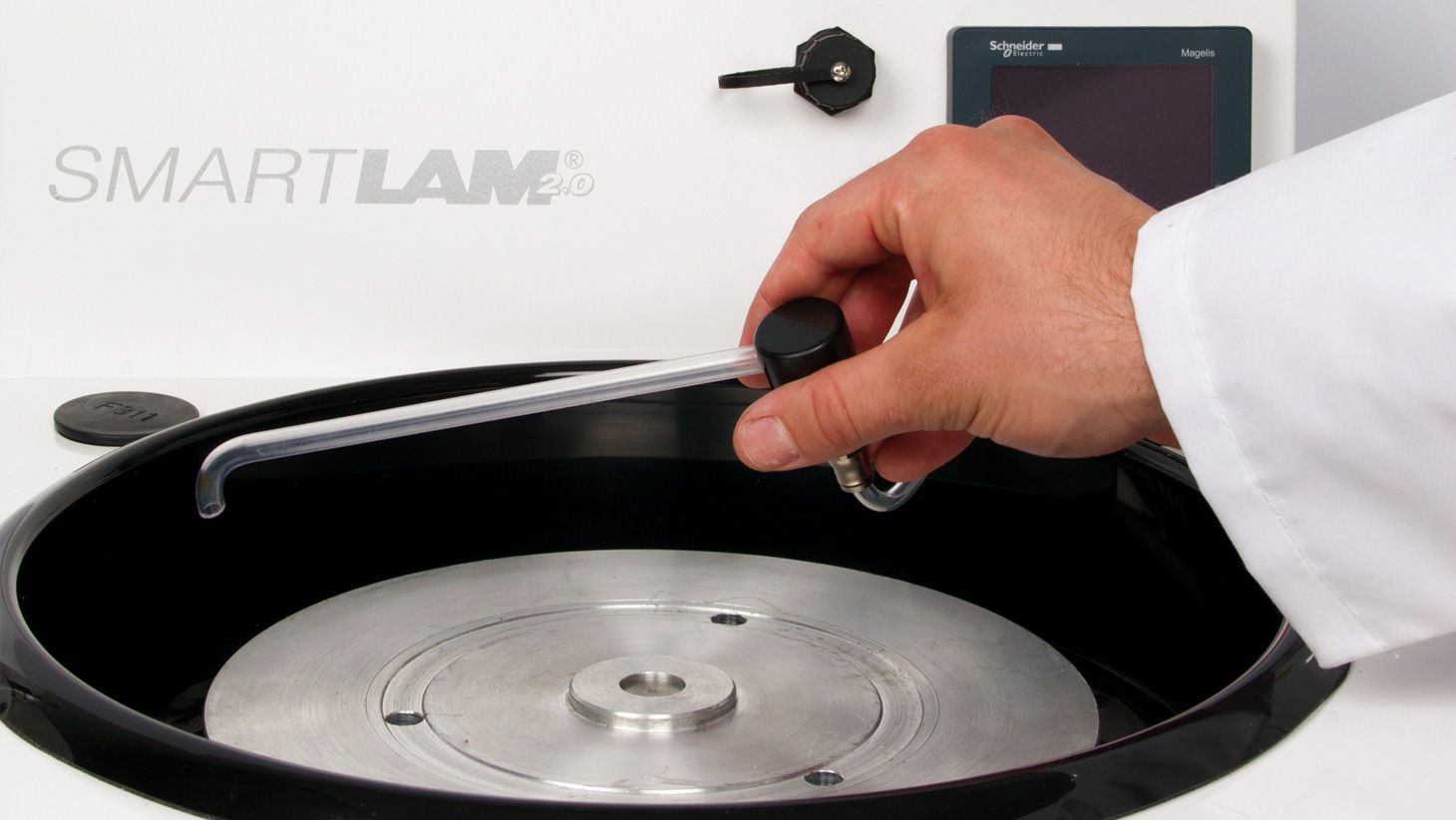

Water inlet	Removable pipe with flow-rate adjustment and safety solenoid valve
Power max	0,75 kW
Voltage	230 V – 50 Hz single-phase
Dim. W x H x D	450 x 300 x 650 mm
Weight	30 kg
Reference	60 SL200 00

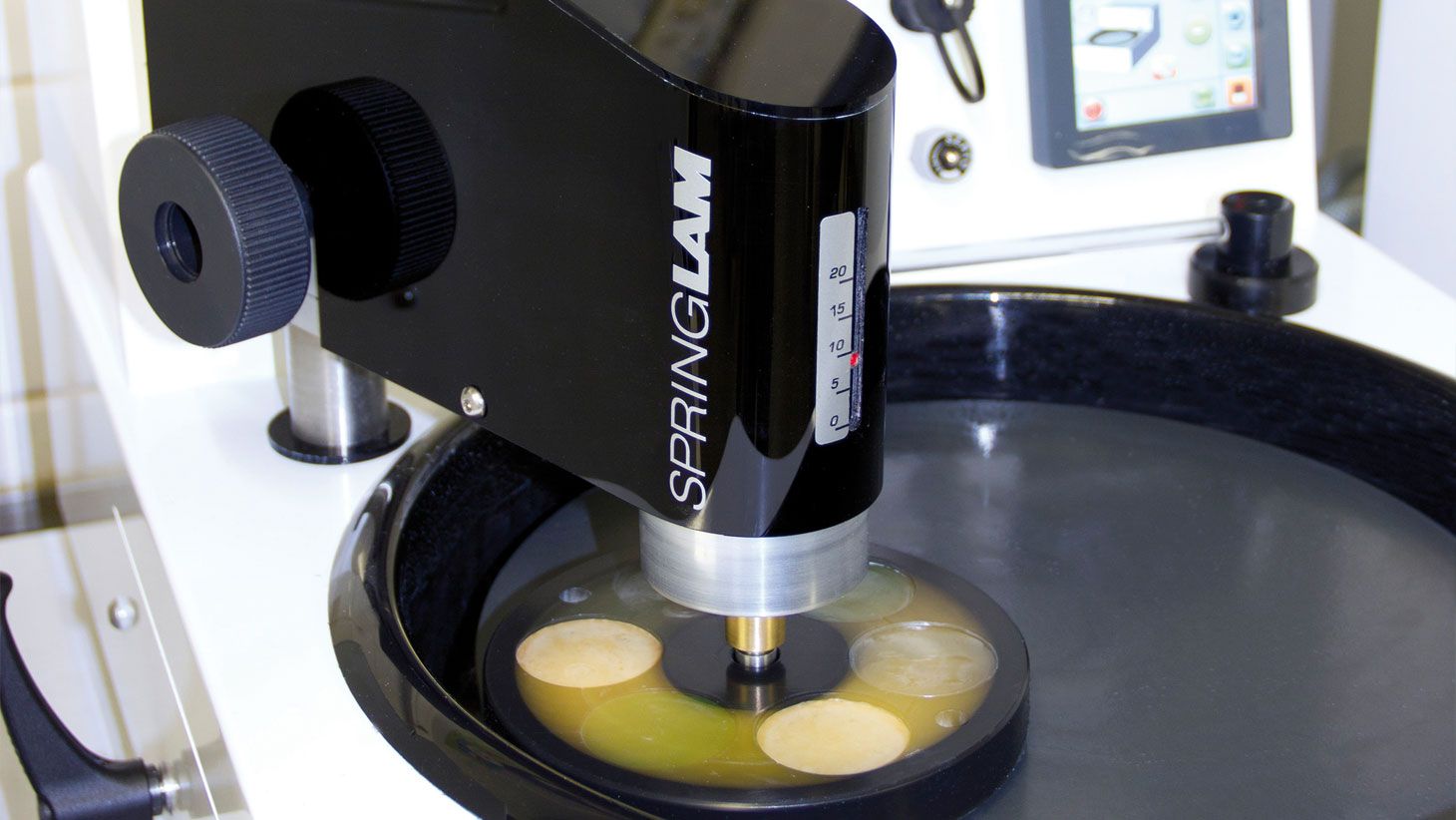

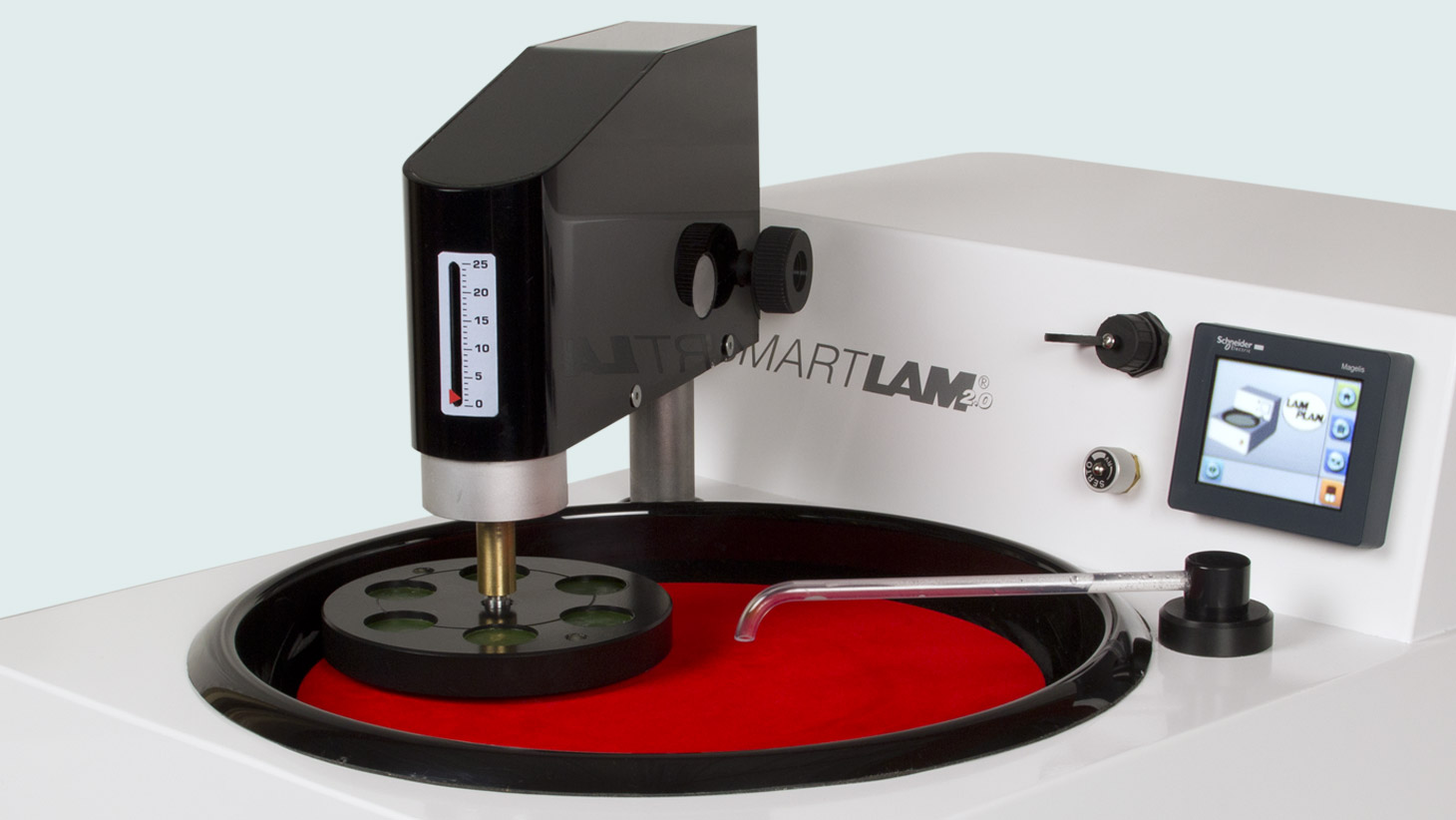

Options: SPRINGLAM^® pressure head

Use the SMARTLAM^® as a semi-automatic polisher.

Variable pressure thanks to the 0- 250 N spring
Attachment system for central pressure sample-holder
Sample-holder Ø 119 mm 6 alveolus water drops for Ø 20 to 32 mm

ACCESSORIES & OPTIONS

Available accessories

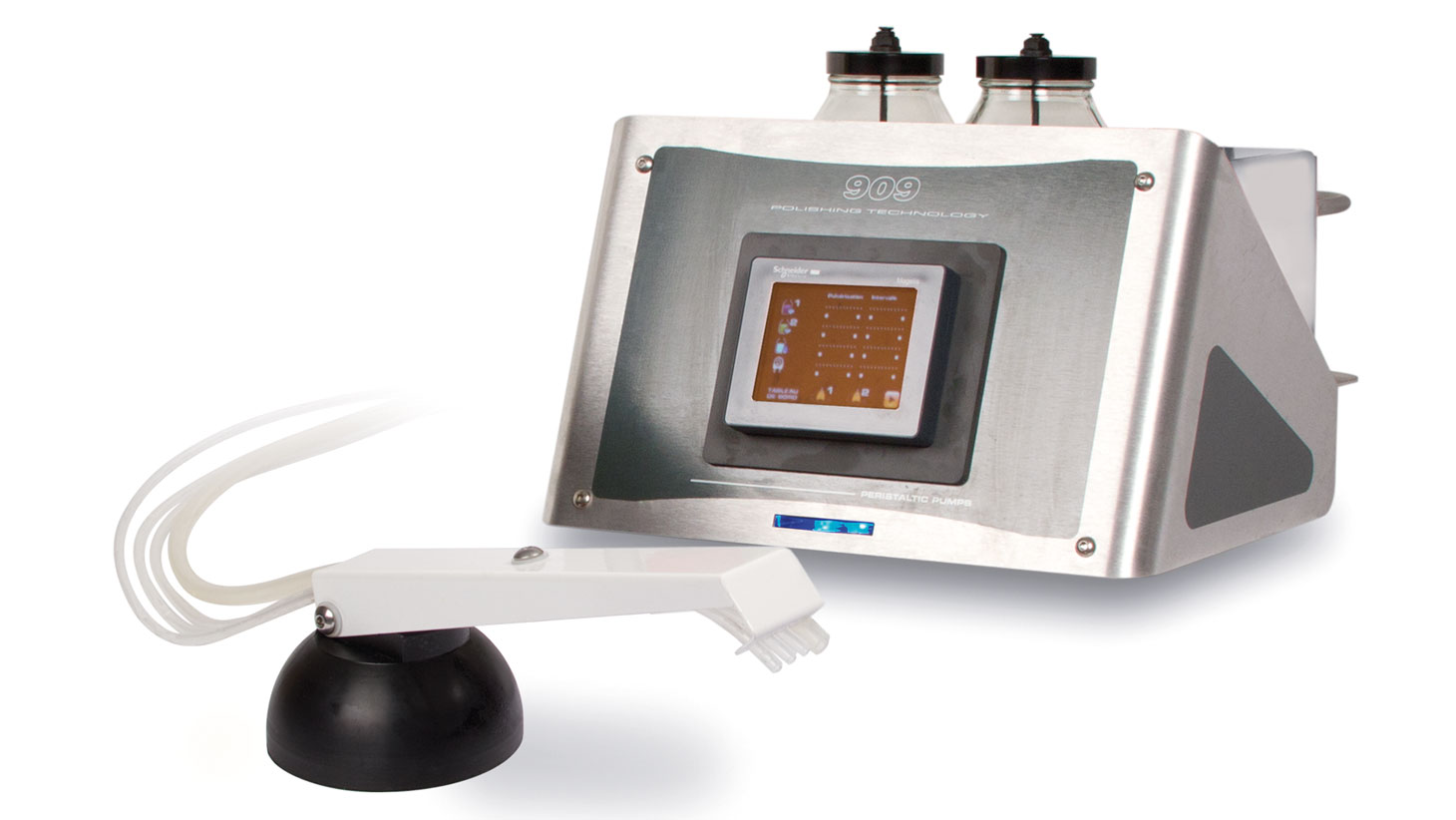

M.M. 909 M dosing unit*

08 00799 10

* SMARTLAM^® 2.0 equipped with the SPRINGLAM^®

Distribution of 3 different liquids.
Touch screen.
3 peristaltic pumps, with 1 outlet to drive an external pump.
Aluminium plates
- Aluminium plate Ø 200 mm – 08 8270100
- Aluminium plate Ø 230 mm – 08 8270200
- Aluminium plate Ø 250 mm – 08 8270300
- Aluminium plate Ø 300 mm – 08 8270400
Clamping rings
- Clamping ring Ø 200 mm – 60 SL00290
- Clamping ring Ø 230 mm – 60 SL00190
- Clamping ring Ø 250 mm – 60 SL00490
- Clamping ring Ø 300 mm – 60 SL00690
- Clamping ring Ø 305 mm – 60 SL00790
Tank reducers
- Tank reducer Ø 200 mm – 60 ML08090
- Tank reducer Ø 230 mm – 60 ML08290
- Tank reducer Ø 250 mm – 60 ML08190

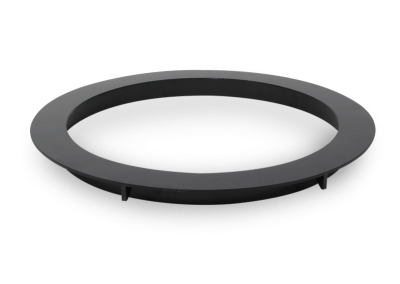

Anti-splash ring

60 ML08091

For MASTERLAM^® & SMARTLAM^® 2.0

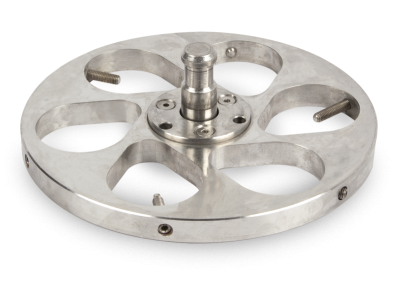

CP samples holder*
* SMARTLAM^® 2.0 equipped with the SPRINGLAM^®
- Ø 119 mm with 6 x Ø 20 to 32 mm water drop cells
  06MLP0200
- Ø 160 mm with 6 x Ø 20 to 40 mm water drop cells
  06MLC1000
- Ø 160 mm with 9 x Ø 30 mm water drop cells
  06MLC3000
- Ø 160 mm with 6 x Ø 40 mm water drop cells
  06MLC4000
- Ø 160 mm with 5 x Ø 50 mm water drop cells
  06MLC5000

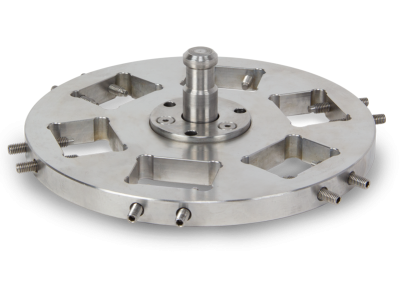

- Ø 160 mm with 3 x rectangular 40 x 70 mm water drop cells
  06MLC1200
- Ø 160 mm with 6 x rectangular 25 x 34 mm water drop cells
  06MLC1400
Reducer rings
- Kit 6 x Ø 40 mm reducer rings – 06MLIK500
- Kit 6 x Ø 30 mm reducer rings – 06MLIK200
- Kit 6 x Ø 25,4 mm reducer rings – 06MLIK110
- Kit 6 x 1-1/4″ reducer rings – 06MLIK310
- Kit 6 x 1-1/2″ reducer rings – 06MLIK410
- Kit 3 x Ø 40 mm reducer rings – 06SLIK500
- Kit 3 x Ø 30 mm reducer rings – 06SLIK200
- Kit 3 x Ø 25,4 mm reducer rings – 06SLIK110
- Kit 3 x 1-1/4″ reducer rings – 06SLIK310
- Kit 3 x 1-1/2″ reducer rings – 06SLIK410

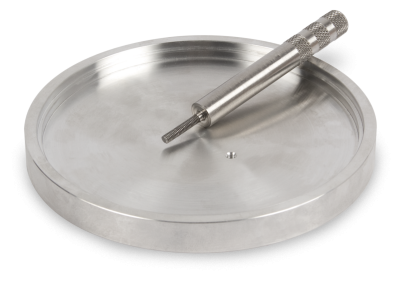

Levelling plate for CP sample holder*

06MLP0200

* SMARTLAM^® 2.0 equipped with the SPRINGLAM^®

Ø 119 mm – 3 mm depth
