Accessories for polishing machines

Plates & supports, sample holders, accessories & distibutors…

Plates & supports

Aluminium plates

For machines SMARTLAM^®2.0 & 3.0

Aluminium plate Ø 200 mm			08 82701 00
Aluminium plate Ø 230 mm			08 82702 00

For machines SMARTLAM^®2.0 & 3.0, MASTERLAM^®1.0 & 3.0

Aluminium plate Ø 250 mm			08 82703 00
Aluminium plate Ø 300 mm			08 82704 00

For machine MASTERLAM^®1.1

Aluminium plate Ø 400 mm

08 82706 00

Metal clamping rings

For machines SMARTLAM^®2.0 & 3.0

For Ø 200 mm plate			60 SL002 90
For Ø 230 mm plate			60 SL001 90

For machines SMARTLAM^®2.0 & 3.0, MASTERLAM^®1.0 & 3.0

For Ø 250 mm plate			60 SL004 90
For Ø 300 mm plate			60 SL006 90
For Ø 305 mm plate			60 SL007 90

Tank reducers SMARTLAM^®

For machines SMARTLAM^®2.0 & 3.0

For Ø 200 mm plate			60 ML080 90
For Ø 230 mm plate			60 ML082 90

For machines SMARTLAM^®2.0 & 3.0, MASTERLAM^®1.0 & 3.0

For Ø 250 mm plate

60 ML081 90

Anti-splash rings

60 ML080 91

For machines SMARTLAM^®2.0, MASTERLAM^®1.0 & 3.0

Sample holders and accessories

CP sample holder

For machine SMARTLAM^®2.0 with SPRINGLAM^®

PC Ø 119 mm with 6 x Ø 20 to 32 mm water drop cells

06 MLP02 00

For machine SMARTLAM^®2.0 with SPRINGLAM^®
For machines MASTERLAM^®1.0 and 3.0

PC Ø 160 mm with 6 x Ø 20 to 40 mm water drop cells			06 MLC10 00
PC Ø 160 mm with 9 x Ø 30 mm water drop cells			06 MLC30 00
PC Ø 160 mm with 6 x Ø 40 mm water drop cells			06 MLC40 00
PC Ø 160 mm with 5 x Ø 50 mm water drop cells			06 MLC50 00
PC Ø 160 mm with 3 x rectangular 40 x 70 mm			06 MLC12 00
PC Ø 160 mm with 6 x rectangular 25 x 34 mm			06 MLC14 00

For machine MASTERLAM^®1.1

PC Ø 210 mm without cavity

06 MLC01 00

IP sample holder

For machine MASTERLAM^®3.0

IP Ø 160 mm with 6 x Ø 50 mm water cells

06 MLI10 00

Sample holder for complex geometric parts

06 MLC60 00

For machine MASTERLAM^®1.0, 1.1 and 3.0

Ø 160 mm central pressure sample holder for eccentric restriction of non-embedded complex geometric parts.

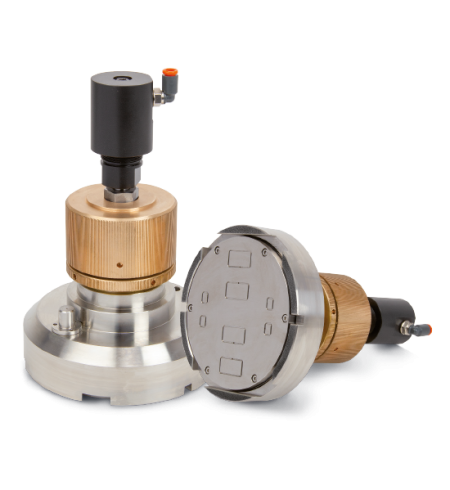

PE128 precision sample holder for thin slides

06 PE128 00

For machine M.M.8400

The LAM PLAN PE128 specimen holder is used to hold several thin blades, by vacuum suction, during a lapping operation.

This sample holder guarantees a high level of parallelism. The precision and robustness of this device enable it to meet the specific demands of research laboratories and the constraints of production laboratories alike.

Adjustable thin-slide thickness and automatic parallelism.

Set includes

1 micrometer ruler
1 vacuum pump
1 Ø 120 mm sample holder.

Compatible thin blades: 6x 30×45 or 6x 28×48 – 1x 120×45 + 2x 28×48 (or 2x 30×45) 1x 120×90 – 1x 60×80 + 2x 28×48 (or 2x30x45) – 2x 60×80 – 4x 24×27 – 4x Ø1inch.

Technical specifications

Adjustment ring accuracy: 200 µm per revolution
Usable internal diameter: 128 mm
Dimensions (H x Ø): 210 x 144 mm
Weight : 6,27 kg

Levelling plates for CP sample holder

For machine SMARTLAM^®2.0 with SPRINGLAM®
For machine SMARTLAM^®3.0

CP Ø 160 mm – 3 mm depth			06 MLP01 00
CP Ø 119 mm – 3 mm depth			06 MLP02 00

Reducer rings

For machine MASTERLAM^®3.0

Kit 6 x Ø 40 mm reducer rings			06 MLIK5 00
Kit 6 x Ø 30 mm reducer rings			06 MLIK2 00
Kit 6 x Ø 25,4 mm reducer rings			06 MLIK1 10
Kit 6 x 1-1/4 reducer rings			06 MLIK3 10
Kit 6 x 1-1/2″ reducer rings			06 MLIK4 10

For machine SMARTLAM^®3.0

Kit 3 x Ø 40 mm reducer rings			06 SLIK5 00
Kit 3 x Ø 30 mm reducer rings			06 SLIK2 00
Kit 3 x Ø 25,4 mm reducer rings			06 SLIK1 10
Kit 3 x 1-1/4 reducer rings			06 SLIK3 10
Kit 3 x 1-1/2″ reducer rings			06 SLIK4 10

Dosing units

Dosing unit DISTRILAM^®

60 MLD00 00

For machines MASTERLAM^®1.0, 3.0 & 1.1

The automatic dosing unit DISTRILAM^® is directly controlled via the touch screen on the machine through a RS 232 connector. It is instantly recognised by all the MASTERLAM^® polishing devices as the control program is already programmed in the machines. It is equipped with 4 circuits composed of 3 standard peristaltic pumps for an accurate dosage of diamond liquids, and 1 high flow rate peristatic pump for the dosage of the lubricant or the colloidal silica abrasive. It works without compressed air nor electric wiring. The automatic dosing unit DISTRILAM^® is an indispensable accessory for an automatic use of the MASTERLAM^®.

This device is the guarantee of a reproducible process and an economic use of the fluids.

It contains: a dosing unit, a machine connection, a 4 ways distribution nozzle on magnetic leg and 4 plastic bottles.

Dimensions W x H x D : 170 x 205 x 200 mm

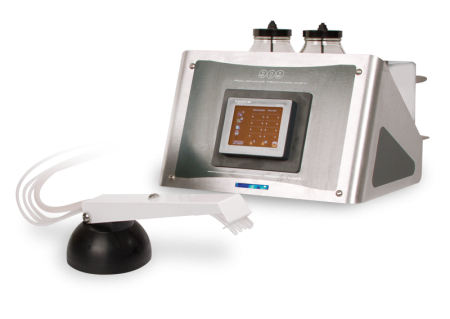

Dosing unit M.M.909 M

08 00799 10

For machine SMARTLAM^®2.0 with SPRINGLAM®
For machine SMARTLAM^®3.0

Distribution of 3 different liquids
Controls:Touch screen
3 peristaltic pumps, with 1 outlet to drive an external pump
Electrical power supply: 230 v single-phase 50 Hz
Dosing / machine communication: 1 x 24 V input for machine servoing
Option : Replacement of a standard peristaltic pump by a high flow rate pump for high-viscosity products

Compressor

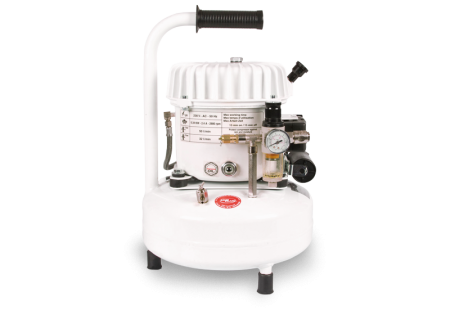

Diaphragm compressor

Diaphragm compressor for laboratories that are not equipped with a compressed air network. Silent operating.

Flow	Pressure	Dim. W x H x D	Ref.
50 l/min	8 bar	330 x 500 x 330 mm	60 COM00 00

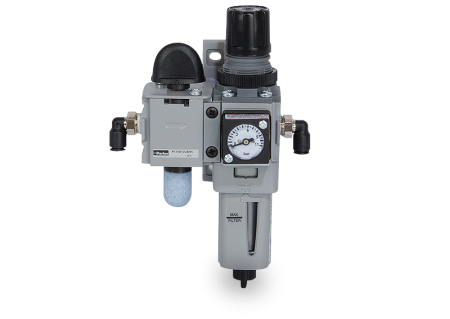

Pressure regulator filter

Pressure regulator filter kit for compressed air

60 00375 90

Indispensable to preserve the machines from impurities.
Compatible with: CUTLAM^®4.0 & CUTLAM^®5.0, PRESSLAM^®1.1, SMARTLAM^®3.0, MASTERLAM^®1.0/1.1/3.0.

Universal sample-holder mould

Universal sample-holder mould Serie 610

The LAM PLAN universal sample-holder mould is a smart and economical system which combines the functions of both mounting mould and sample-holder for cold mounting processes using any kind of liquid resin. This system has been developed as two removable parts: the metallic universal sample-holder with non-stick coating and a special silicon based flexible mould to embed your cold mounting samples.

Use

The 610 sample holder can be used on both automatic and semi-automatic machines. It is directly compatible with the SMARTLAM^®2.0 fitted with the SPRINGLAM^® pressure arm. An adaptor kit is available for use with an automatic machine with motorised head.

Type	SMARTLAM^® 2.0 option SPRINGLAM^®	MASTERLAM^® 1.0 MASTERLAM^®3.0	Ref.
Ø 110 mm with 6 x Ø 28 mm cells	Ø 200 mm		06 00612 20
Ø 145 mm 3 moulds 6 included cells 6 x Ø 40, 6 x Ø 35 and 6 x Ø 32 mm	Ø 250 – 300 mm	Ø 250 – 300 mm	06 00614 10
Ø 145 mm with 3 moulds 6 included cells 6 x Ø 30, 6 x Ø 25 and 6 x Ø 20 mm	Ø 250 – 300 mm	Ø 250 – 300 mm	06 00614 20
Ø 145 mm with moulds 3 x Ø 50 mm cells	Ø 250 – 300 mm	Ø 250 – 300 mm	06 00614 30
Ø 145 mm with 2 moulds 3 included rectangular cells 3 x 30 x 55 mm and 3 x 18 x 55 mm	Ø 250 – 300 mm	Ø 250 – 300 mm	06 00614 40
Ø Ø 159 mm with mould 6 x Ø 36 mm cells	Ø 250 – 300 mm	Ø 250 – 300 mm	06 00612 40
Ø 159 mm with mould 10 x Ø 28 mm cells	Ø 300 mm	Ø 300 mm	06 00612 50
Universal sample holder ADAPTOR KIT for MASTERLAM^®1.0 and 3.0		X	06 K0010 00

In order to use the universal sample-holders with the SMARTLAM^®2.0, the machine must be fitted with a SPRINGLAM^® pressure arm.
The universal sample-holders are not compatible with the individual pressure.

Transparent protective housing

Transparent protective housing forMASTERLAM^® range

The secured housing is a totally transparent protection compatible with the full range of MASTERLAM^®. Its opening stops all movements of the machine*, it offers
an integral protection complying with the 2006/42/ CE and 2004/108/CE standards.

The housing’s design preserves the accessibility of the plate and does not clutter the workspace.

The touch screen is located outside of the secured zone; therefore, the commands are permanently accessible.

*However, the transparent secured housing authorises the plate rotation in the manual mode.

For machines MASTERLAM^®1.0 & 3.0

For the MASTERLAM^®1.0 and 3.0 the touch screen control panel is located on the right, a 195 mm space needs to be foreseen in addition to the machine width.

Space: width 770 mm, height 910 mm

60 MLEP0 00

For machine MASTERLAM^®1.1

Space: width 880 mm, height 910 mm

60 MLEP1 00

Sedimentation tanks

Sedimentation 60 L tank

60 A0029 90

For machines MASTERLAM^®1.0, 3.0 & 1.1

Sedimentation 60 L tank + pump

60 A0029 00

For machines MASTERLAM^®1.0, 3.0 & 1.1

With pump controlled by the machine.
