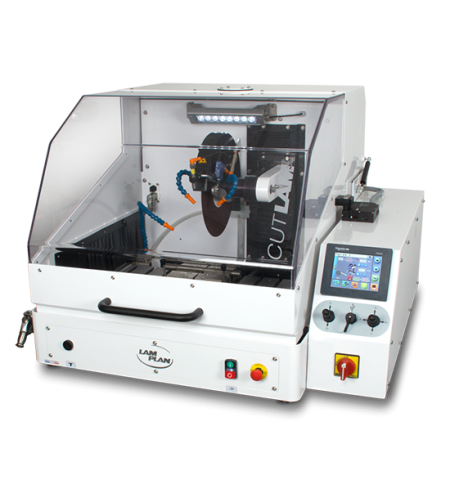

Automatic and programmable cutting machine with 2 or 3 motorised axes, equipped with a 300 mm Ø cut-off wheel
Optional motorised 3^rd Axis (X)

Largest cut-off area on the market

Unreleased

The cutting wheel translates linearly from top to bottom, it offers a 140 mm space under the cutting wheel.

Wheel Ø
250 to 300 mm
Wheel rotation speed
from 1000 to 4000 rpm
Max cutting capacity
Ø 110 mm
Dim. W x H x D
900 x 700 x 1000 mm

See the full technical sheet

INTRODUCTION

CUTLAM^®3.1

It’s the ultimate development of LAM PLAN and is the most advanced automatic Ø 300 mm cut-off machine in its market sector.

Largest cut-off area on the market of Ø 300 mm cut-off
machines

The CUTLAM^®3.1 offers an unprecedented cutting capacity, the machine table can move forward and backward automatically over a distance of 300 mm.

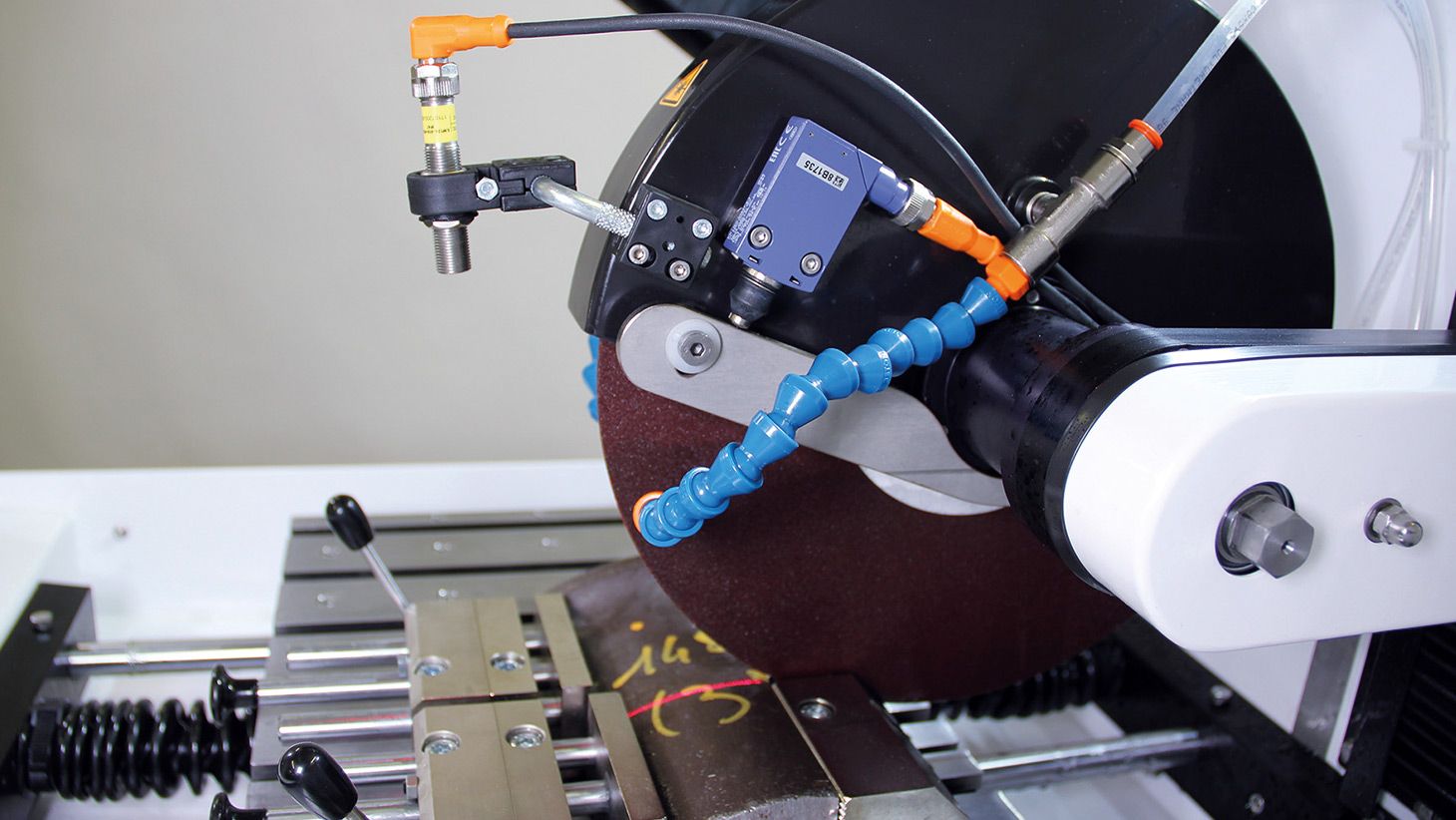

New, the cut-off wheel has an automatic and linear top-to-bottom movement. With this linear movement, this new-generation of cutting machine offers a 140 mm space under the cutting wheel. The CUTLAM^®3.1 has a cover which includes opening side to cut bars.

Many cutting possibilities are offered

This automatic cut-off machine makes it possible to cut vertically (along axis Z), over a maximum stroke of 200 mm, or to cut horizontally along axis Y, over a maximum stroke of 300 mm.

It is also possible to combine the two Z and Y movements. Thus, your machine will be able to perform cutting passes with a pass number and depth, which can be programmed.

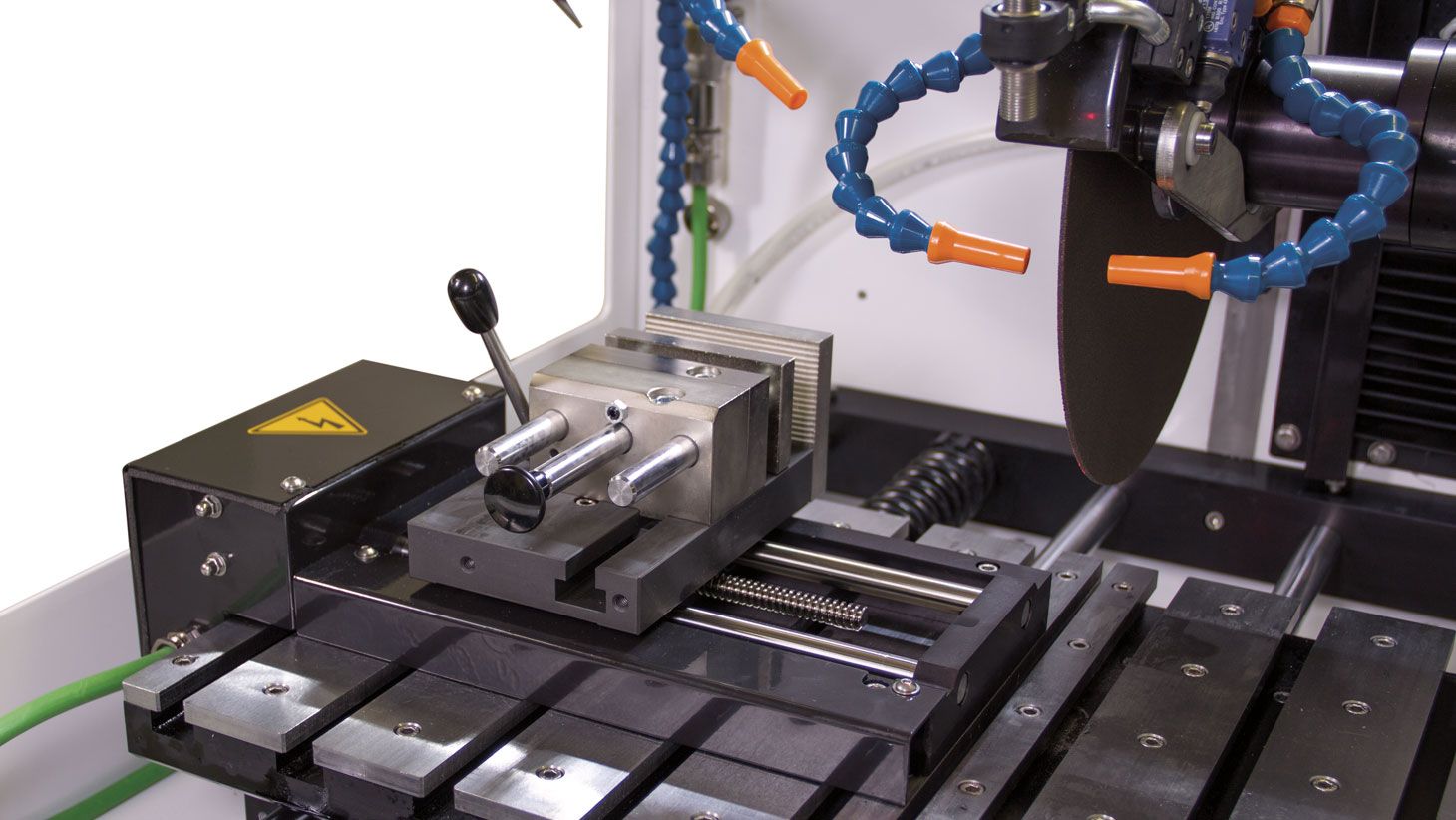

This machine can optionally be equipped with a manual or automatic X axis for cutting parallel sections.

Easy to use

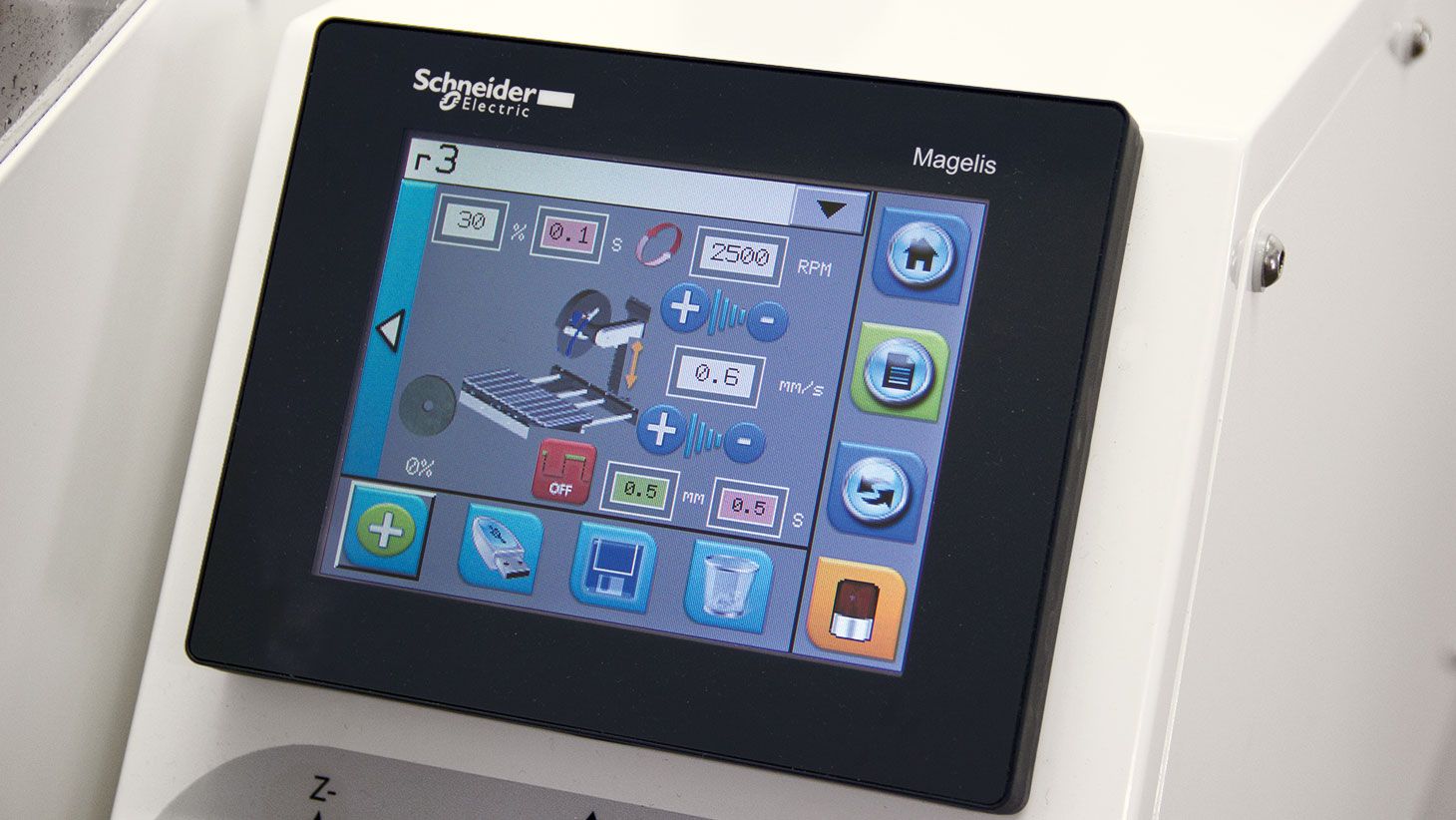

The CUTLAM^®3.1 is extremely simple to operate with its large touch screen (5.7 inches) and intuitive interface. The 2 motorised axes of CUTLAM^®3.1 (optional 3rd axis) can be controlled manually by two joysticks located near the control screen. The internal memory allow to save over 300 cutting programs, which can also be imported or exported via a USB port.

VIDEO & VISUALS

Design
and advanced technology

An interlocking device maintains the cover in its closed position when the cutting wheel is rotating. When the cover is open, any axes movement (controlled by the joysticks) is only possible when the technician presses the “man present” button.

All LAM PLAN videos on Youtube

Laser positioning device

Non-contractual wp-content/uploads

IN DETAIL

Technical characteristics
and equipment

Theoretical cutting capacity

*space under wheel

A great variety of possible setting configuration

The rotation speed of the cutting wheel and the feed speed of the axes can be programmed so as to prevent any deterioration or deformation of the samples. 3 cutting modes are possible: manual (via joysticks), semi-automatic and automatic. The movements of the axes can be continuous or sequenced.

The CUTLAM^®3.1 is also equipped with the smart motion function: the definition of an acceptable torque for the cutting wheel, with the touch screen will automatically regulate the feed speed of the axes.

This option makes it possible to cut materials with different hardnesses (e.g. steel with an HVOF coating) without having to modify the feed speed. This option allows to avoid long testing campaigns to define the correct feed speed.

Downloads

Technical sheet

PDF 239 Ko

Catalogs

Catalogs page

Technical data CUTLAM^®3.1

Wheel Ø	250 to 300 mm
Shaft Ø	25,4 mm
Max cutting capacity	Ø 110 mm
Space between the cutting wheel and the table (with wheel Ø 300 mm)	140 mm
Table	Stainless steel 574 x 298 mm
Longitudinal movement – table	300 mm
Vertical movement – wheel	200 mm
Transversal movement	150 mm (optional)
Motor power wheel	3,8 kW
Cooling/Lubrication	Recirculation system, 60 litres decantation tank, 2 chambers, Input 100 µm filter, 800 L/hour pump driven by the machine
Wheel rotation speed	from 1000 to 4000 rpm
Cutting mode	Manual, semi-automatic, automatic
Feed speed control	from 0.1 to 20 mm/s, continuous or sequenced. Intelligent motion: automatic check of the feed motion according to the resulting torque on the cutting wheel motor
Lighting	LED strip
Protection	Cover secured by interlocking Man present button for operating the axes when the cover is open
Voltage	400 Volts – 50 Hz (three-phase + ground)
Dim. W x H x D	900 x 700 x 1000 (H. cover open 1100 mm)
Weight	210 kg
Reference	60 CT31A 00

ACCESSORIES & OPTIONS

Available accessories

CUTLAM^® support cabinet

60 M0310 00

Solid painted-steel piece of furniture specially designed for CUTLAM^® products. It contains a storage door for tools and cut-off wheels, a drawer on top and a space for the recirculation tank. This piece of furniture is stable and has adjustable feet.

Dimensions: L x H x D : 700 x 800 x 1050 mm.

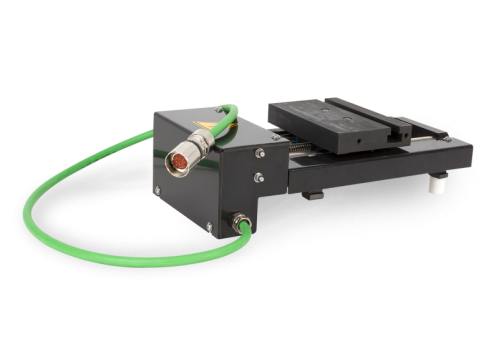

Automatic transversal table (X movement)

60 CT31A 30

Stroke 150 mm

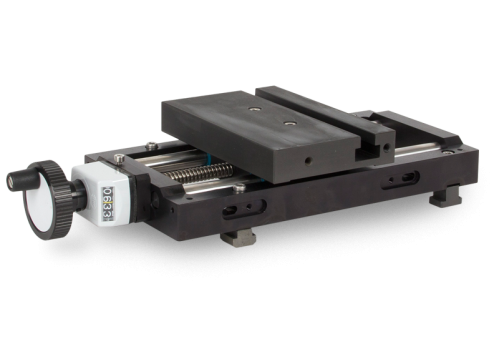

Transversal table (X movement)

60 CT31A 20

Manual movement with roller, stroke 150 mm
Display accuracy: 0,01 mm
Can receive right vice reference
60 CT200 20 or 60 CT200 40

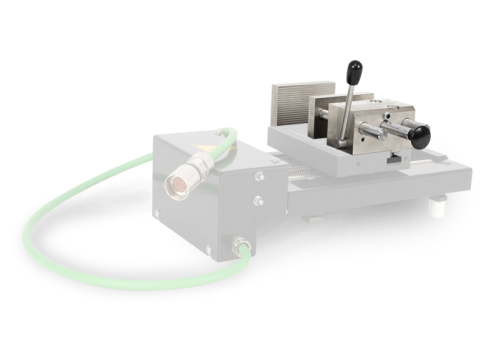

Specific vice with fast tightening system

60 CT306 20

For transversal table 60 CT31A 20 and 60 CT31A 30, left lever

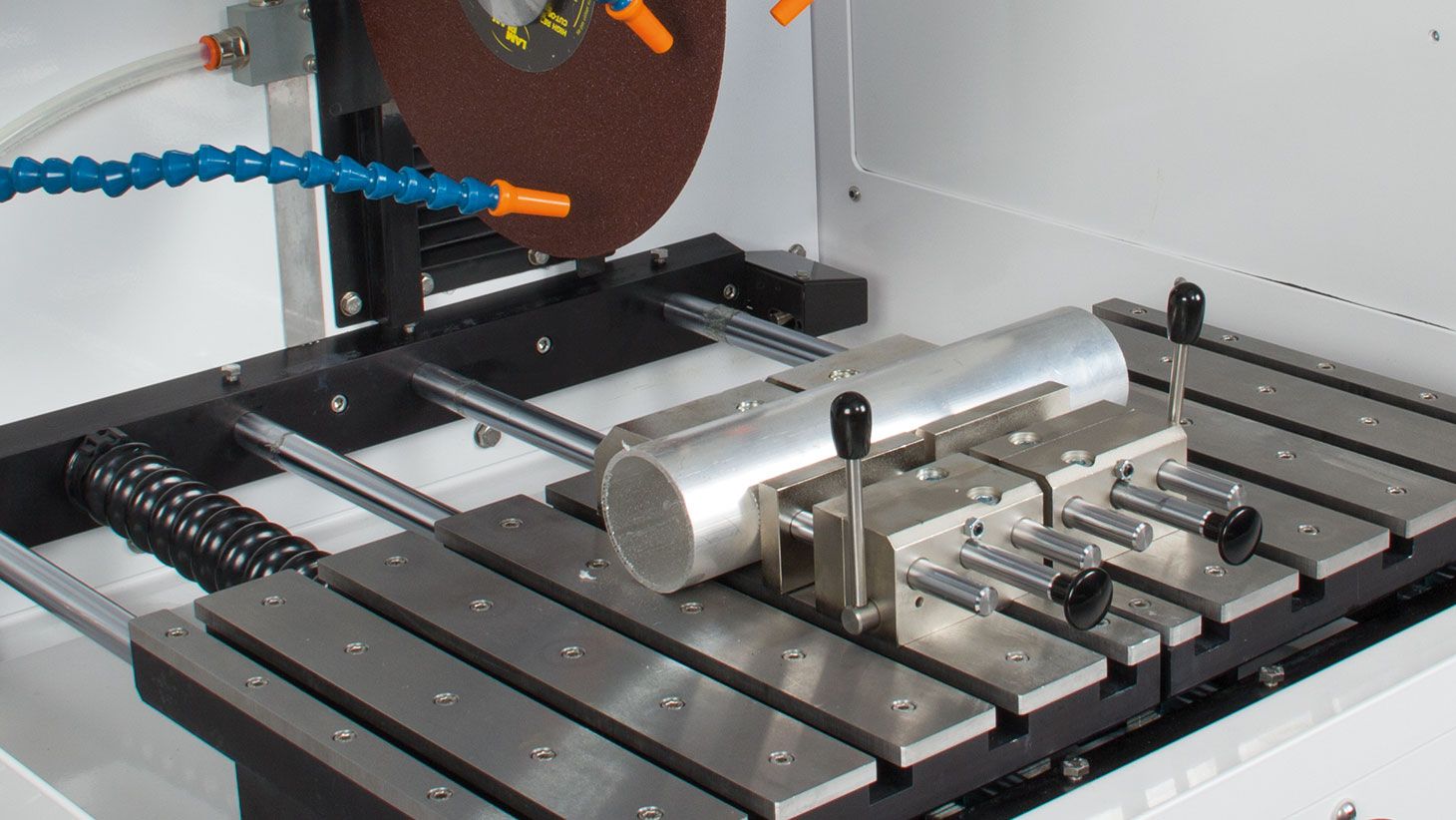

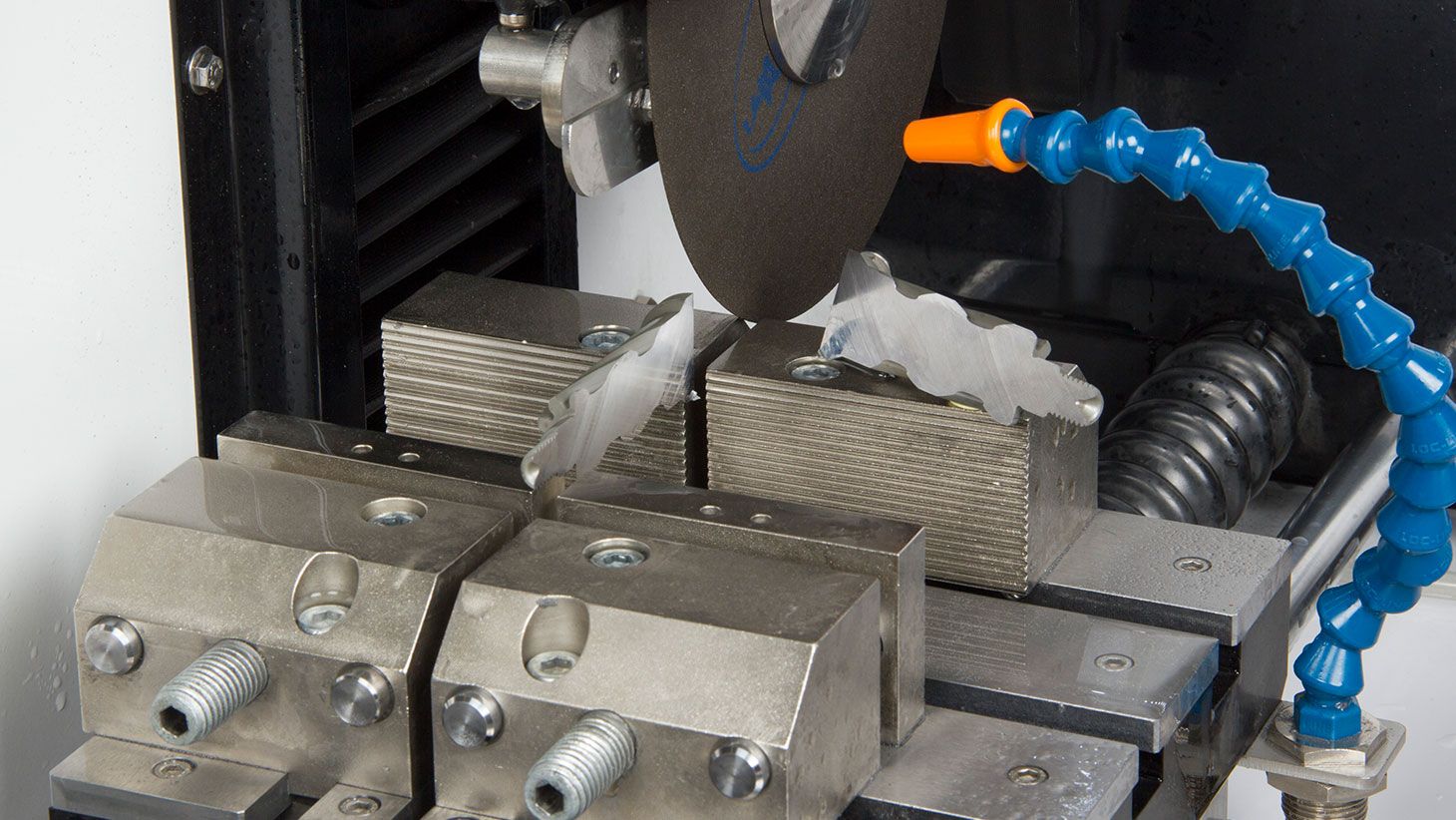

Double vice with fast tightening system (left and right side of the wheel)

60 CT200 20

2 x 2 elements vice, without sole, to obtain maximal length clamping
Jaw width 80 mm
Jaw height 45 mm
T-slot 12 mm screw included
Lever (left and right)
Double vice with screw tightening system (left and right side of the wheel)

60 CT200 40

2 x 2 element vice, without sole, to obtain maximal length clamping
Jaws width 80 mm
Jaws height 45 mm
T-slot 12 mm screw included
Left and right levers
Universal clamping KOPAL 61

60 081282 20
Lift for KOPAL 61

60 081282 40
Long cam for KOPAL 61

60 00285 90

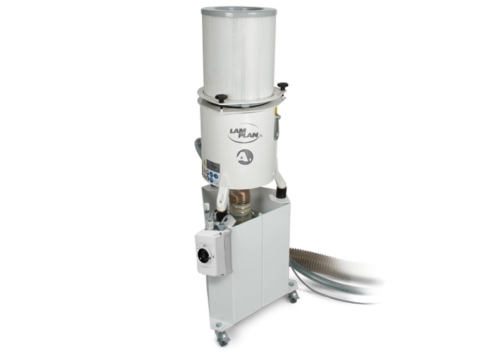

Oil mist extraction device – A1

60 CT204 00

The LAM PLAN vaccuming system extracts the “polluted” air inside the cutting chamber of your cutting machine.
– A special multilayer filter will stop the smallest polluting particles, thus preventing their dispersion into the atmosphere.
– The cutting fluid, in the liquid state, is returned to the cutting machine recirculation tank to be reused. (An evacuation is provided for this purpose on the vacuuming system).
– A cartridge post-filter, located above the suction system, ensures a high filtration level, up to 99.97%.
-An adapter part (LAM PLAN code 60CT20820) is provided to adapt the suction hose to the canopy of the LAM PLAN cutting machine.
– The vacuuming system is mounted on a trolley with wheels, allowing an easy positioning.
-A drain valve, located in the trolley, collects the condensate.
Adaptor rings (by 5) for cut-off wheels
- Steel Ø 32 x 25,4 mm – 60 00373 90
- PVC Ø 32 x 25,4 mm – 60 00374 90
