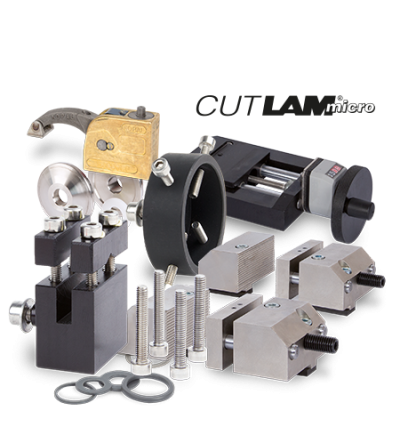

Accessories for CUTLAM^®micro range

Vices, clamping tools & accessories for CUTLAM^®micro range

Accessories for CUTLAM^®micro 1.1, 2.0 & 3.0

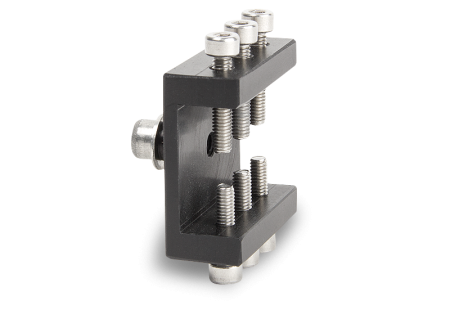

Multi-screw sample holder for irregular parts

60 CTM03 50

For machines CUTLAM^®Micro 1.1 & 2.0

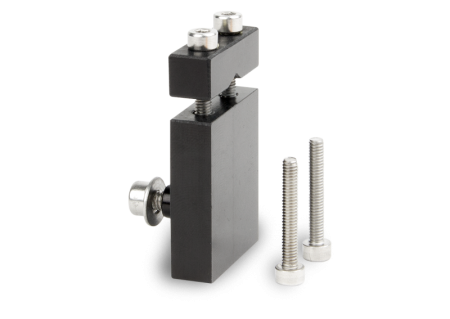

Screw vice holder: max Ø 12 mm

60 CTM03 30

For machines CUTLAM^®Micro 1.1 & 2.0

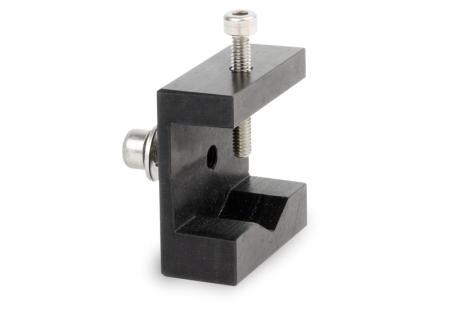

Screw V-shape sample holder: max Ø 24 mm

60 CTM03 20

For machines CUTLAM^®Micro 1.1 & 2.0

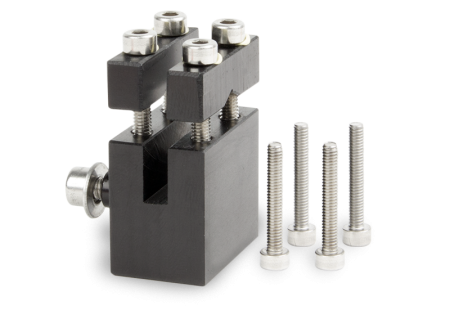

Screw double vice sample holder: Ø 12 mm maxi

60 CTM03 40

For machines CUTLAM^®Micro 1.1 & 2.0

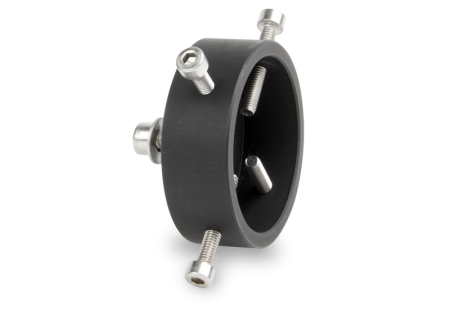

Screw cylindrical sample holder: Ø 12 mm to 50 mm

60 CTM03 10

For machines CUTLAM^®Micro 1.1 & 2.0

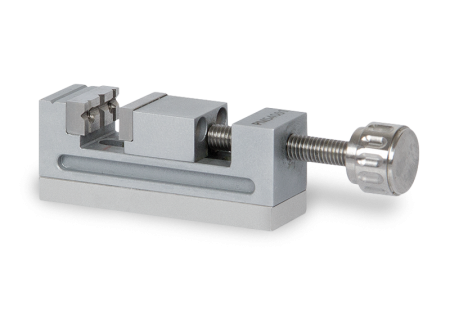

Small vice with screw tightening system: Ø 12 mm

60 CTM02 10

For machines CUTLAM^®Micro 1.1 & 2.0

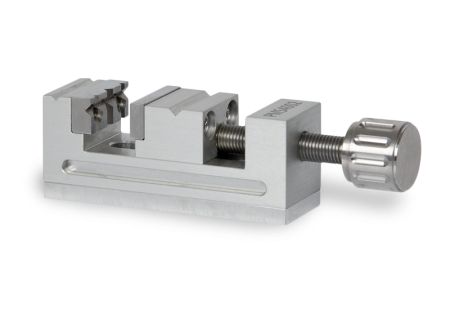

Medium vice with screw tightening system: Ø 24 mm

60 CTM021 10

For machine CUTLAM^®Micro 2.0

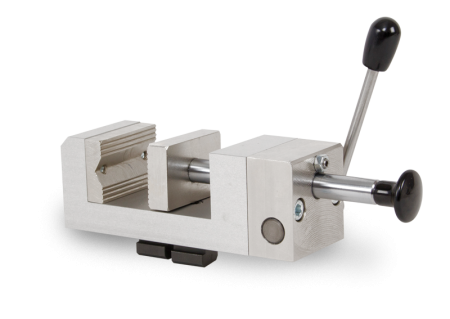

Small right vice with fast tightening system stroke 53 mm

60 CTM32 00

For machine CUTLAM^®Micro 3.0

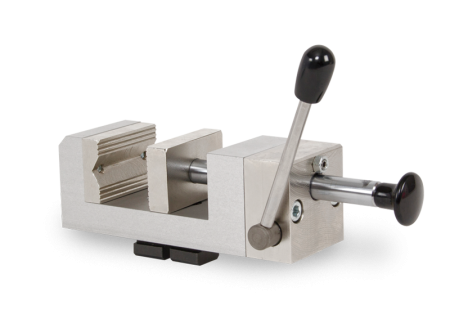

Small left vice with fast tightening system stroke 53 mm

60 CTM33 00

For machine CUTLAM^®Micro 3.0

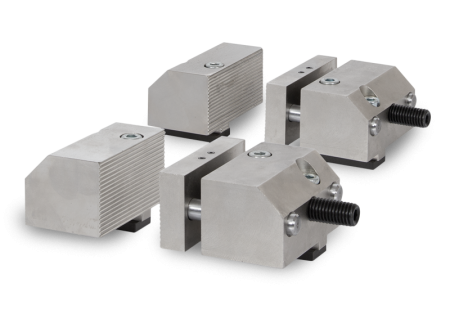

Double vice with screw tightening system (left and right side of the wheel)

60 CT200 40

For machine CUTLAM^®Micro 3.0

2 x 2 element vice, without sole, to obtain maximal length clamping
Jaws width 80 mm
Jaws height 45 mm
T-slot 12 mm screw included
Left and right levers

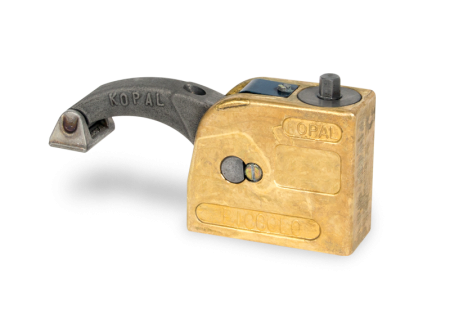

Universal clamping KOPAL 54

60 CTM36 00

For machine CUTLAM^®Micro 3.0

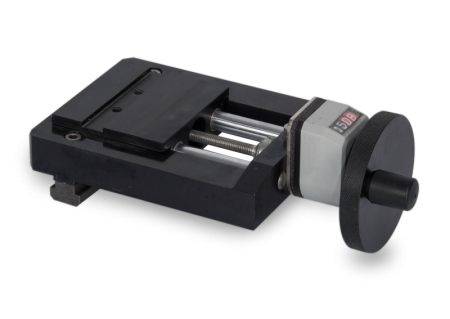

Transversal table (X movement) to execute parallel cuts

60 CTM31 00

For machine CUTLAM^®Micro 3.0

Manual movement with a roller, stroke 55 mm, precision 0,01 mm.
Can receive right vice reference 60CT200 20 or 60 CT200 40

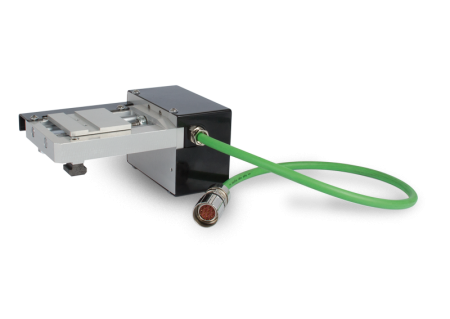

Automatic transversal table (X movement)

60 CTM34 00

For machine CUTLAM^®Micro 3.0

Stroke 50 mm, precision 0,01 mm

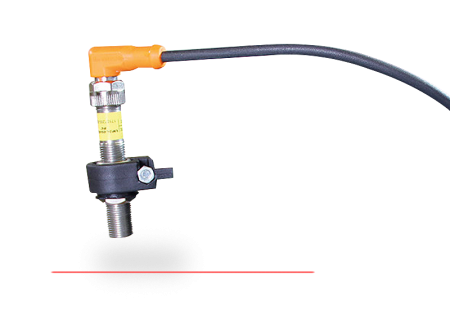

Laser positioning device

60 CTM35 00

For machine CUTLAM^®Micro 3.0

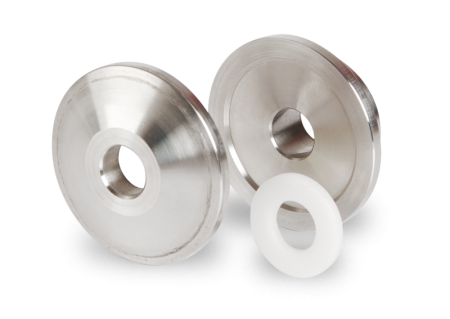

Set of flanges

For machine CUTLAM^®Micro 1.1

Set of flanges Ø 35 mm for cut-off wheels Ø 75 to 100 mm

60 CTM01 10

For machine CUTLAM^®Micro 2.0

Set of flanges Ø 35 mm for cut-off wheels Ø 75 to 100 mm			60 CTM01 10
Set of flanges Ø 75 mm for cut-off wheels until Ø 230 mm			60 CTM01 30

For machine CUTLAM^®Micro 3.0

Set of flanges Ø 35 mm for cut-off wheels Ø 75 to 100 mm			60 CTM01 10
Set of flanges Ø 50 mm for cut-off wheels Ø 125 to 150 mm			60 CTM01 20
Set of flanges Ø 75 mm for cut-off wheels until Ø 230 mm			60 CTM01 30

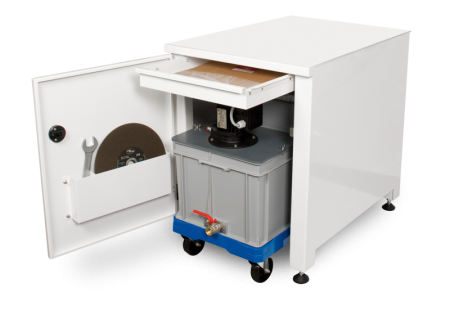

CUTLAM^® support cabinet

60 M0100 00

Solid painted-steel piece of furniture specially designed for CUTLAM^®micro products. It contains a storage door for tools and cut-off wheels, a drawer on top and a space for the recirculation tank. This piece of furniture is stable and has adjustable feet.

For machine CUTLAM^®micro 3.0

Dimensions L x H x P : 630 x 800 x 835 mm

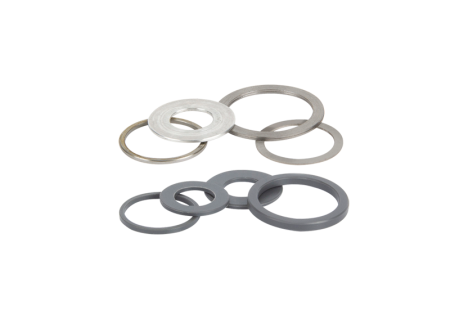

Adaptor rings for cut-off wheels

For machine CUTLAM^®Micro 2.0

Steel Ø 25,4 x 12,7 mm			60 00369 90
PVC Ø 25,4 x 12,7 mm			60 00370 90

For machine CUTLAM^®Micro 3.0

Steel Ø 22 x 12,7 mm			60 00608 90
PVC Ø 22 x 12,7 mm			60 00609 90
Steel Ø 25,4 x 12,7 mm			60 00369 90
PVC Ø 25,4 x 12,7 mm			60 00370 90
