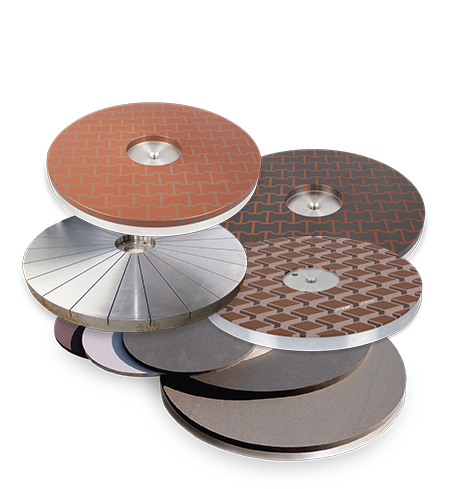

Lapping plates

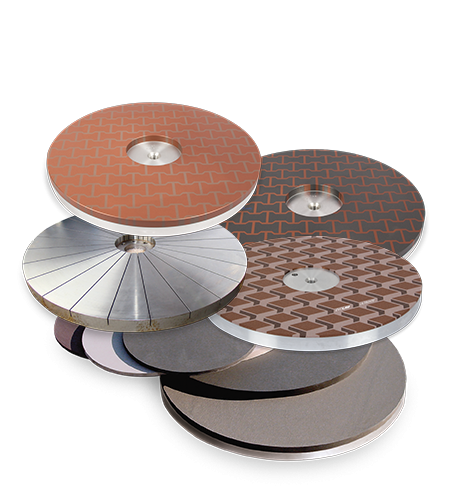

Cast iron AQUA LAM®, NEW LAM® M’M’, EVOLAM, 2000 Series & cooling system.

Cast iron AQUA LAM®, NEW LAM® M'M', EVOLAM, 2000 Series & cooling system

AQUA LAM® cast iron plates

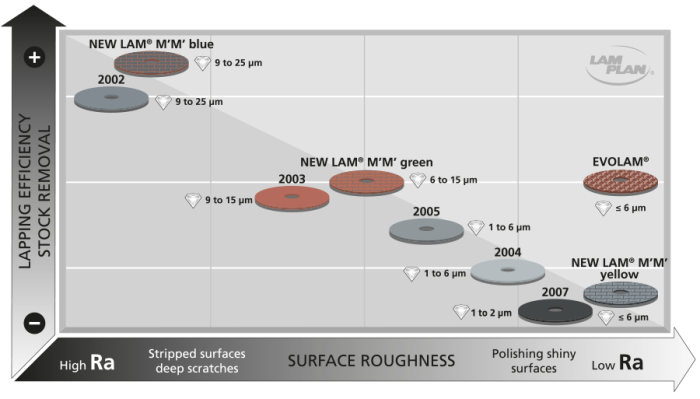

lamplan rodagepolissage machines asavoir01
As a manufacturer and designer of cast iron plates and rings, we select specific high quality cast iron for optimum and long lasting results. AQUA LAM® plates and rings are suitable for all lapping machines of any brand or size. Available from stock or made to order within the shortest deadlines, AQUA LAM® cast iron plates and rings offer exceptional value for money.

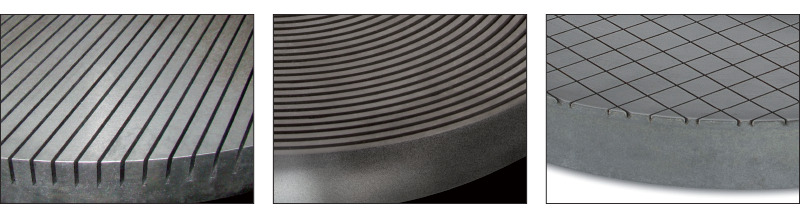

Lapping cast iron plates with radial grooving by default, available on request in full or with all types of grooves, Concentric, Helical and Linear.


lamplan rodagepolissage accessoires aqualam

AQUA LAM® cast iron plates

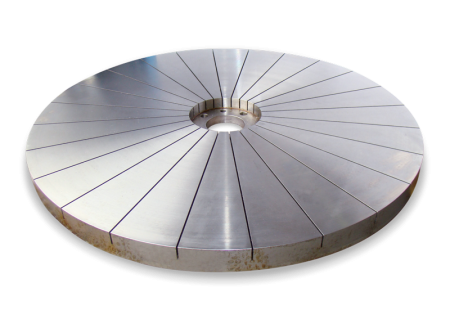

Radial grooved cast iron plate with LAM PLAN adaptation system, other machine adaptations on request.



 Dimensions Ø
 Thickness
(according to lapping machine types)		 Ref.
14” 355 mm 25 – 40 mm V0 14RA STD
15” 381 mm 25 – 40 mm V0 15RA STD
19” 480 mm 25 – 40 mm V0 19RA STD
24” 610 mm 35 – 40 mm V0 24RA STD
28” 700 mm  55 mm V0 28RA STD
36” 914 mm 57 – 58 mm V0 36RA STD
39” 1000 mm 57 – 60 mm V0 40RA STD
        1200 mm 70 mm V0 47RA STD
48” 1219 mm 70 mm V0 48RA STD
59” 1500 mm 80 – 100 mm V0 59RA STD

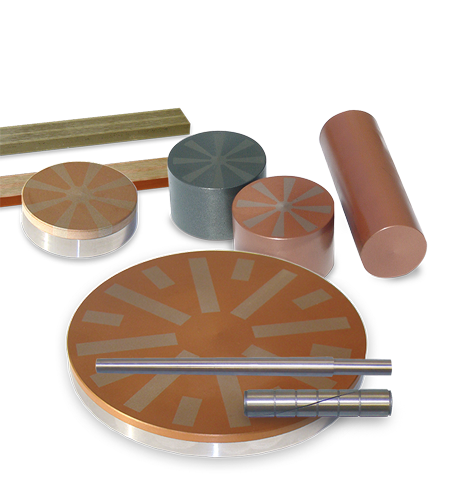

NEW LAM® M’M’ plates

25 years ago, LAM PLAN designed the patented NEW LAM® M’M’ poli-lapping system. Since then LAM PLAN has constantly made its process evolve to respond to the technical requirements of its customers. The system patented and established in production plants throughout the world is today a must in the lapping polishing process.

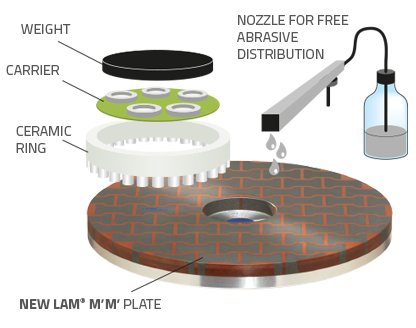

The NEW LAM® M’M’plate, uses free diamond abrasives for its operation. As soon as the plate starts rotating, under the effect of the initial weight of the parts and the load applied by the machine’s jacks, the diamond grains move and fix on the surface of the plate producing a unique abrasive action on the side of the parts to be lapped.

The patent:

The disposition and the shape of the two components of the plate permit an optimum alternation between the hard areas and the soft areas. The cut angle of the diamond grains is permanently changed, which ensures a large stock removal and a perfect inherent flatness.

Fields of application

lamplan rodagepolissage accessoires aqualam lamplan rodagepolissage accessoires aqualam

NEW LAM® M’M’ patented plates BLUE – Rough lapping

 Standard
 Ø
 Thickness (mm) Ø central
bore in mm
 Ref.
14″ 355 mm 13   09 NL103 20
15″ 381 mm 13 100 09 NL103 30
16″ 406 mm 13 100 09 NL103 40
19″ 480 mm 13 100 09 NL103 55
24″ 610 mm 15 115 09 NL103 60
27″ 700 mm 15 150 09 NL103 70
30″ 762 mm 15 152 09 NL103 80
36″ 914 mm 15 175 09 NL103 90
1000 mm 15 188 09 NL103 00
1200 mm 15 240 09 NL103 50
1500 mm 15 300 09 NL103 10



 Incorporated cooling circuit
 Ø
 Thickness (mm) Ø central
bore in mm		 Ref.
15″ 381 mm 13 100 09 NL203 30
24″ 610 mm 15 115 09 NL203 60
700 mm 15 150 09 NL203 70
1000 mm 15 188 09 NL203 00
1200 mm 15 240 09 NL203 50
1500 mm 15 300 09 NL203 10

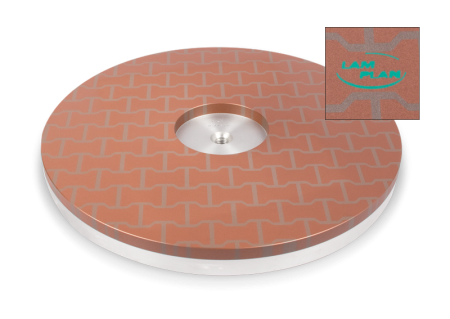

NEW LAM® M’M’ patented plates GREEN – Fine Lapping/Polishing

 Standard
 Ø
 Thickness (mm) Ø central
bore in mm
 Ref.
14″ 355 mm 13   09 NL106 20
15″ 381 mm 13 100 09 NL106 30
16″ 406 mm 13 100 09 NL106 40
19″ 480 mm 13 100 09 NL106 55
24″ 610 mm 15 115 09 NL106 60
27″ 700 mm 15 150 09 NL106 70
30″ 762 mm 15 152 09 NL106 80
36″ 914 mm 15 175 09 NL106 90
1000 mm 15 188 09 NL106 00
1200 mm 15 240 09 NL106 50
1500 mm 15 300 09 NL106 10



 Incorporated cooling circuit
 Ø
 Thickness (mm) Ø central
bore in mm		 Ref.
15″ 381 mm 13 100 09 NL206 30
24″ 610 mm 15 115 09 NL206 60
700 mm 15 150 09 NL206 70
1000 mm 15 188 09 NL206 00
1200 mm 15 240 09 NL206 50
1500 mm 15 300 09 NL206 10

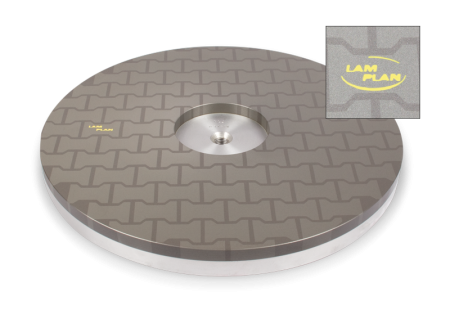

NEW LAM® M’M’ patented plates YELLOW – Super finishing polishing

 Standard
 Ø
 Thickness (mm) Ø central
bore in mm
 Ref.
14″ 355 mm 13   09 NL105 20
15″ 381 mm 13 100 09 NL105 30
16″ 406 mm 13 100 09 NL105 40
19″ 480 mm 13 100 09 NL105 55
24″ 610 mm 15 115 09 NL105 60
27″ 700 mm 15 150 09 NL105 70
30″ 762 mm 15 152 09 NL105 80
36″ 914 mm 15 175 09 NL105 90
1000 mm 15 188 09 NL105 00
1200 mm 15 240 09 NL105 50
1500 mm 15 300 09 NL105 10



 Incorporated cooling circuit
 Ø
 Thickness (mm) Ø central
bore in mm
 Ref.
15″ 381 mm 13 100 09 NL205 30
24″ 610 mm 15 115 09 NL205 60
700 mm 15 150 09 NL205 70
1000 mm 15 188 09 NL205 00
1200 mm 15 240 09 NL205 50
1500 mm 15 300 09 NL205 10

EVOLAM® composite plates NEW

A plate for 3 steps

The new EVOLAM® ULTIMATE and EVOLAM® CLASSIC lapping plates have been specially developed for hard materials such as sapphire and technical ceramics. The specific composition of these plates gives them an excellent stock removal combined with a low roughness. A poly-lapping operation with our EVOLAM® plates allows to obtain the superfinishing stage in only one step.

A C or H groove is generally made on EVOLAM® plates to increase their performance.

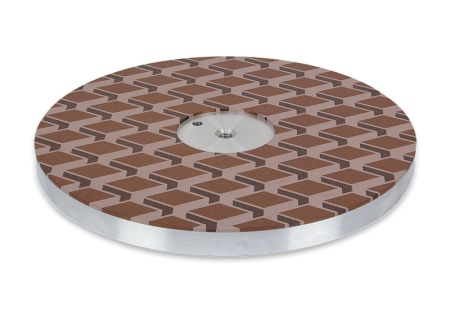

EVOLAM® ULTIMATE composite plates

 Ø
 Thickness Ref.
15″ 381 mm 8 mm 09 EL154 30
19″ 480 mm 8 mm 09 EL154 55
24″ 610 mm 8 mm 09 EL154 60
700 mm 8 mm 09 EL154 70

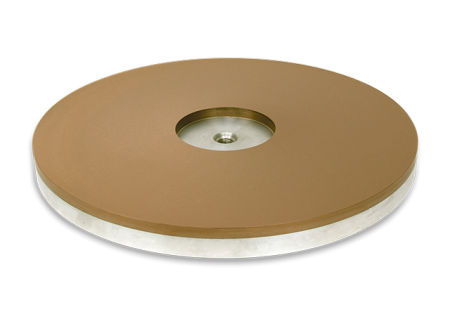

EVOLAM® CLASSIC composite plates

 Ø
 Thickness Ref.
30’’ 762 mm 13 mm 09 EL104 80
36’’ 914 mm 13 mm 09 EL104 90
1000 mm 13 mm 09 EL104 00
1200 mm 13 mm 09 EL104 50
1500 mm 13 mm 09 EL104 10

Temperature control system

Flat lapping is based on the laws of mechanics and physics where a constant temperature is essential.

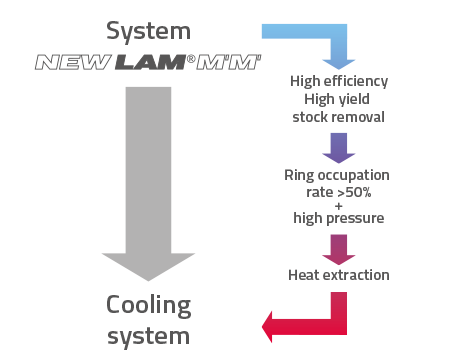

Temperature variations of a lapping plate, whether inherent in the lapping process or dependent on external conditions, can be detrimental to the quality of the desired result. To avoid such damage, the use of our plates at high yield NEW LAM M’M’ requires the use of a temperature control system.

COMPOSITE LAM PLAN plates with an integrated cooling system ensure temperature fluctuation control during series production. This option enables avoidance of plate distortion and consequently, distortion of your pieces.

lamplan supports systemenewlammm shema en

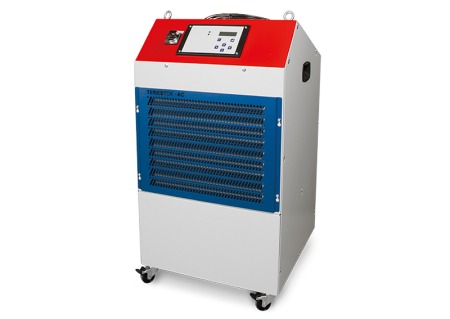

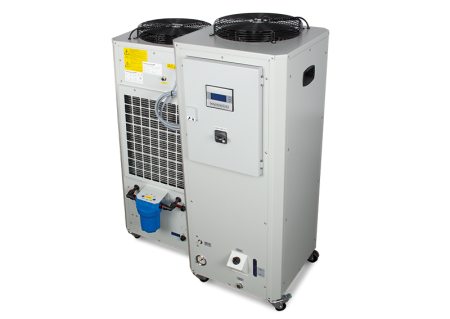

P803 regulator

To control the flatness of the trays, the temperature must be controlled.

To control plate flatness, temperature must be regulated. The LAM PLAN P803 temperature regulation unit is reversable.  It can also raise the plate temperature before use. This enables lapping to start in optimum geometric conditions in any work environment.

The P803 regulator is designed to maintain the temperature between 2 set values. It is an autonomous machine which has its own command interface.

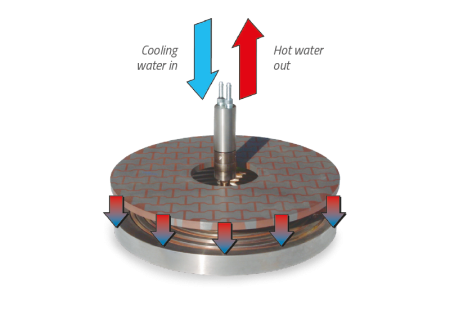

NEW LAM M’M’ plate with temperature regulation system

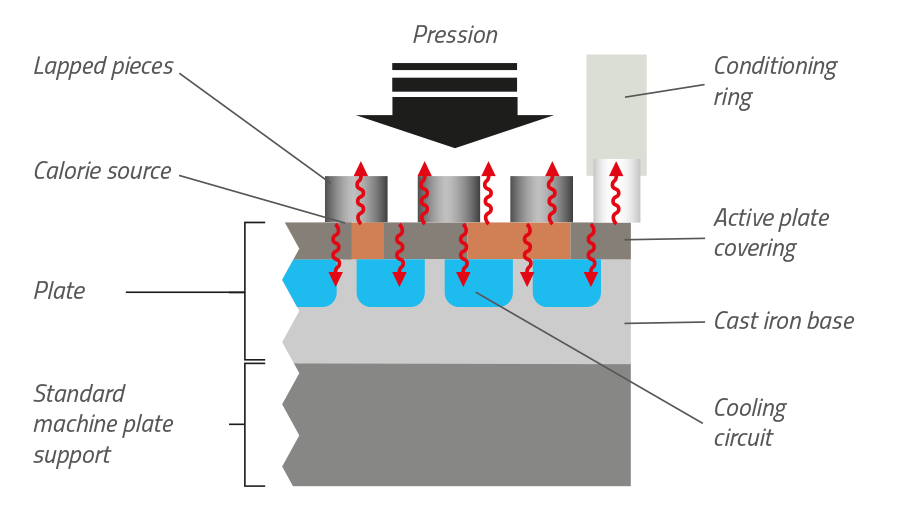

The LAM PLAN cooling system captures calories directly under the active plate surface. It is adaptable for all machines.

lamplan supports plateaulammm shema en

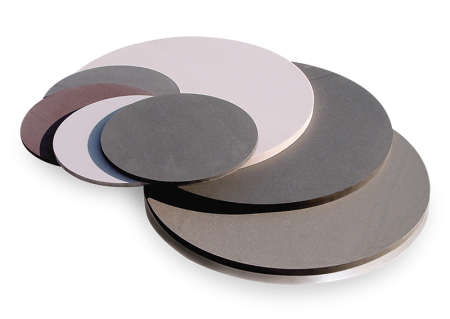

Series 2000 mono-component plates

Primarily used during pre-polishing phases these plates allow a surface condition
which facilitates the finishing step on polishing cloths to be optained.

Available in solid version or to order with radial, concentric, spiral or linear grooving.

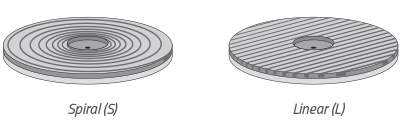

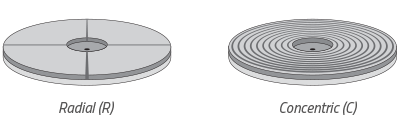

Different kinds of grooves

lamplan rodagepolissage accessoires serie2000fig1 lamplan rodagepolissage accessoires serie2000fig2

2006 mono-component plates

Middle & fine Lapping Polishing – All materials



 For abrasive 6 µm to 1 µm
 Ø
Thickness (mm) Ref.
15″ 381 mm 13 09 P2006 30
19’’ 480 mm 13 09 P2006 55
24″ 610 mm 13 09 P2006 60
700 mm 13 09 P2006 70
1 000 mm 13 09 P2006 00

2001 mono-component plates

Fine Lapping – Hard material



 For abrasive 15 µm to 1 µm
 Ø
Thickness (mm) Ref.
15″ 381 mm 6 09 P2001 30
19’’ 480 mm 6 09 P2001 55
24″ 610 mm 6 09 P2001 60
700 mm 6 09 P2001 70
1 000 mm 6 09 P2001 00

2002 mono-component plates

Rough Lapping – All materials



 For abrasive 30 µm to 15 µm
 Ø
Thickness (mm) Ref.
15″ 381 mm 13 09 P2002 30
19’’ 480 mm 13 09 P2002 55
24″ 610 mm 13 09 P2002 60
700 mm 13 09 P2002 70
1 000 mm 13 09 P2002 00

2003 mono-component plates

Fine Lapping – All materials



 For abrasive 9 µm to 3 µm
 Ø
Thickness (mm) Ref.
15″ 381 mm 13 09 P2003 30
19’’ 480 mm 13 09 P2003 55
24″ 610 mm 13 09 P2003 60
700 mm 13 09 P2003 70
1 000 mm 13 09 P2003 00

2005 mono-component plates

Super finishing polishing – All materials



 For abrasive 3 µm to 1 µm
 Ø
Thickness (mm) Ref.
15″ 381 mm 13 09 P2005 30
19’’ 480 mm 13 09 P2005 5
24″ 610 mm 13 09 P2005 60
700 mm 13 09 P2005 70
1 000 mm 13 09 P2005 00

2007 mono-component plates

Super finish Polishing – All materials



 For abrasive 2 µm to 1 µm
 Ø
Thickness (mm) Ref.
15″ 381 mm 13 09 P2007 30
19’’ 480 mm 13 09 P2007 55
24″ 610 mm 13 09 P2007 60
700 mm 13 09 P2007 70
1 000 mm 13 09 P2007 00

Guidance

Positioning of LAM PLAN composite lapping plates
